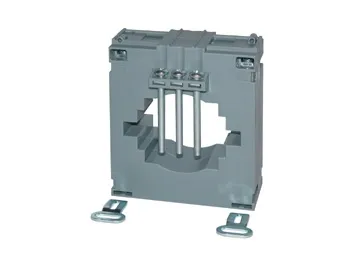

Hobut 20 Series (208) Moulded Case Current Transformers (400A to 2000A)

Manufacturer Part No: CT208

Hobut 20 Series (208) Moulded Case Current Transformers (400A to 2000A)

Manufacturer Part No: CT208

£19.75

£23.70 inc. VAT

Product Description

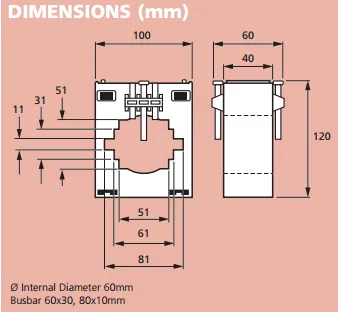

Hobut's 20 Series offers moulded case current transformers for transforming various primary currents into 5A or 1A standard secondary using up to 60 x 30mm or 80 x 10mm busbars, or cables up to 60mm.

Primary currents range from 400A to 2000A and are complete with built-in sealable terminal covers.

Product Features:
  • Built in sealable terminal covers
  • Base or busbar mounting
  • Terminals suitable for screw or push on connectors

Type Supplied:

Primary Current

Class

VA Rating

400A15
500A15
600A15
800A15
1000A15
1200A15
1250A15
1500A15
1600A15
2000A15

Other Classes and VA ratings are available upon request.

Specification

Conformity IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
Rated System Voltage 0.72/3kV
Continuous Current 1.2 x rated current
Ambient Temperature 30°C to 85°C
