Hobut 18 Series (186) Moulded Case Current Transformers (400A to 1600A)
18series main pic
186 SECOND

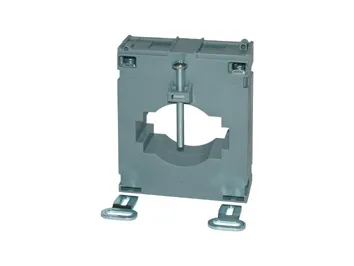

Hobut 18 Series (186) Moulded Case Current Transformers (400A to 1600A)
£16.00
£19.20 inc. VAT
Product Description

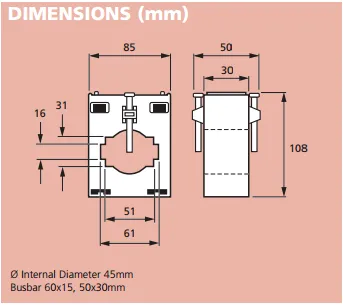

Hobut's 18 Series offers moulded case current transformers for transforming various primary currents into 5A or 1A standard secondary using up to 60 x 15mm or 50 x 30mm busbars, or cables up to 45mm.
Primary currents range from 250A to 1250A and are complete with built-in sealable terminal covers.
Type Supplied:
Primary Current | Class | VA Rating |
| 400A | 1 | 5 |
| 500A | 1 | 5 |
| 600A | 1 | 5 |
| 750A | 1 | 5 |
| 800A | 1 | 5 |
| 1000A | 1 | 5 |
| 1200A | 1 | 5 |
| 1250A | 1 | 5 |
| 1500A | 1 | 5 |
| 1600A | 1 | 5 |
Other Classes and VA ratings are available upon request.
Specification
| Conformity | IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 |
|---|---|
| Rated System Voltage | 0.72/3kV |
| Continuous Current | 1.2 x rated current |
| Ambient Temperature | 30°C to 85°C |
Downloads
Ask an expert about the
CT186 Current Transformer
