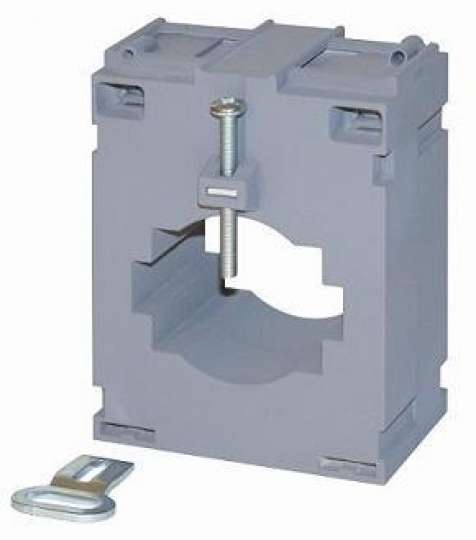

Hobut 17 Series (175) Moulded Case Current Transformers (250A to 1250A)

Manufacturer Part No: CT175

Hobut 17 Series (175) Moulded Case Current Transformers (250A to 1250A)

Manufacturer Part No: CT175

£15.00

£18.00 inc. VAT

Product Description

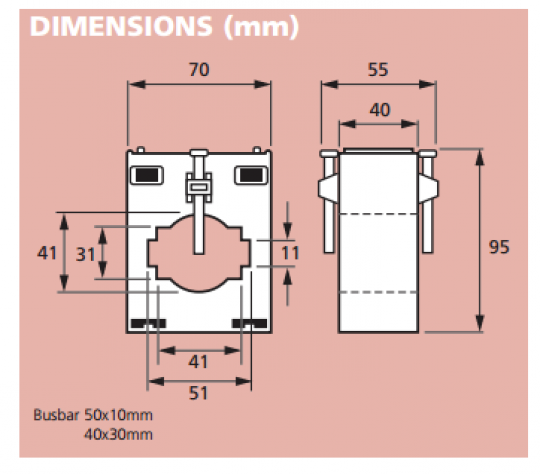

Hobut's 17 Series offers moulded case current transformers for transforming various primary currents into 5A or 1A standard secondary using up to 50 x 10mm or 40 x 30mm busbars, or cables up to 40mm.

Primary currents range from 250A to 1250A and are complete with built-in sealable terminal covers.

Product Features:
  • Built in sealable terminal covers.
  • Mounting feet supplied.
  • Narrow width - 70mm.
  • Wide range of primary current

Type Supplied:

Primary Current

Class

VA Rating

250A12.5
300A12.5
400A12.5
500A12.5
600A15
750A15
800A15
1000A15
1200A15
1250A15

Other Classes and VA ratings are available upon request.

Specification

Conformity IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
Rated System Voltage 0.72/3kV
Continuous Current 1.2 x rated current
Ambient Temperature 30°C to 85°C
