Socomec DIRIS A-30 Power Meter (4825-0403)

Name: Socomec DIRIS A-30 Power Meter (4825-0403)
Brand: Socomec
Price: 278.04 GBP
Availability: InStock

Socomec

Manufacturer Part No: 48250403

Socomec DIRIS A-30 Power Meter (4825-0403)

Socomec

Manufacturer Part No: 48250403

£231.70

£278.04 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

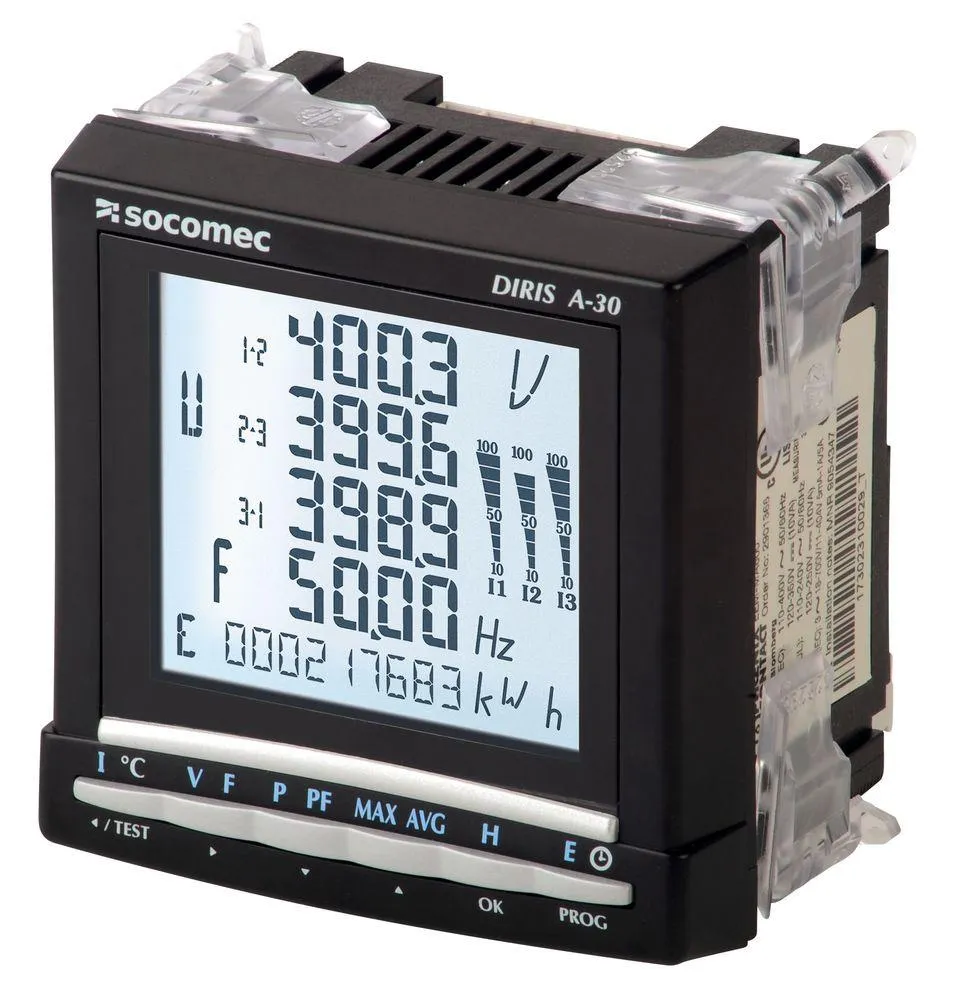

Socomec's DIRIS A-30 is a high-performance metering and monitoring device ideal for energy efficiency and monitoring. This meter features a correction function for TC wiring errors, and a large back-lit multiple-display screen for user-friendly operations.

Additional Communication modules and digital or analogue inputs/outputs modules can be equipped to increase the meters range of functionality.

Product features:

Clear back-lit white display
Wiring error detection
Modules available for Pulse and Modbus RTU
Power Quality measurement (THD up 51st)

Specification

Case

Type	Intergratable, Panel Mounted
Dimensions (W x H x D)	96 x 96 x 60 mm
Case degree of protection	IP30
Front degree of protection	IP52
Display type	Backlit LCD display
Type of terminal strips	Fixed or detachable
Weight	400g
Section of connection for voltages and other terminals	0,2 … 2.5 mm²
Section of connection for currents	0.5 … 6 mm²

Current measurement on insulated inputs (TRMS)

Via CT primary	9 999 A
Via CT secondary	1 or 5 A
Measurement range	0 ... 11 kA
Input consumption	≤ 0,1 VA
Measurement updating period	1 s
Accuracy	0.2 %
Sustained overload	6 A
Intermittent overload	10 In for 1 s

Voltage measurement

Direct measurement between phases	50 … 500 VAC
Direct measurement between phase and neutral	28 … 289 VAC
VT primary measurement	500,000 VAC
VT secondary measurement	60, 100, 110, 173, 190 VAC
Frequency	50 / 60 Hz
Input consumption	≤ 0,1 VA
Measurement updating period	1 s
Accuracy	0.2 %

Current - voltage measurement

Limitation for TC 1 A	10,000,000
Limitation for TC 5 A	10,000,000

Power measurement

Measurement updating period	1 s
Accuracy	0.5 %

Power factor measurement

Measurement updating period	1 s
Accuracy	0.5 %

Frequency measurement

Measurement range	45 … 65 Hz
Measurement updating period	1 s
Accuracy	0.1 %

Energy accuracy

Active (according to IEC 62053-22)	class 0.5 S
Reactive (according to IEC 62053-23)	class 2

Auxiliary power supply

Alternating voltage	100 … 400 VAC
AC tolerance	± 10 %
Direct current	120 … 350 VDC / 12 … 48 VDC
DC tolerance	± 20 % / - 6 … + 20 %
Frequency	50 / 60 Hz
Power consumption	< 10 VA
