Hobut 14 Series (143) Moulded Case Current Transformers (60A to 500A)

Name: Hobut 14 Series (143) Moulded Case Current Transformers (60A to 500A)
Brand: Hobut
Price: 15.6 GBP
Availability: BackOrder

Hobut

Manufacturer Part No: CT143

Hobut 14 Series (143) Moulded Case Current Transformers (60A to 500A)

Hobut

Manufacturer Part No: CT143

£13.00

£15.60 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

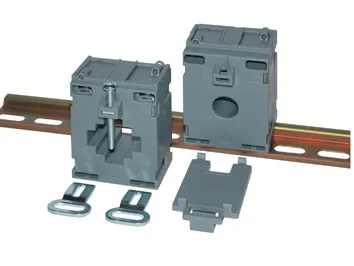

Hobut's 14 Series (CT141 & CT143) offers moulded case current transformers for transforming various primary currents into 5A or 1A standard secondary using up to 30 x 10mm or 20 x 20mm busbars, or cables up to 24mm.

Primary currents range from 60A to 500A and are complete with built-in sealable terminal covers.

Product Features:

DIN rail mounting clip supplied
Built in sealable terminal covers
Mounting feet and busbar screws supplied
Narrow width - 50mm

Type Supplied:

Primary Current	Class	VA Rating
60A	1	1.5
75A	1	1.5
80A	1	1.5
100A	1	2.5
125A	1	2.5
150A	1	2.5
200A	1	2.5
250A	1	2.5
300A	1	2.5
400A	1	2.5
500A	1	2.5

Other Classes and VA ratings are available upon request.

Specification

Conformity	IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
Rated System Voltage	0.72/3kV
Continuous Current	1.2 x rated current
Ambient Temperature	30°C to 85°C
