Hobut 14 Series (141) Moulded Case Current Transformers (25A to 120A)

Manufacturer Part No: CT141

Hobut 14 Series (141) Moulded Case Current Transformers (25A to 120A)

Manufacturer Part No: CT141

£14.00

£16.80 inc. VAT

Product Description

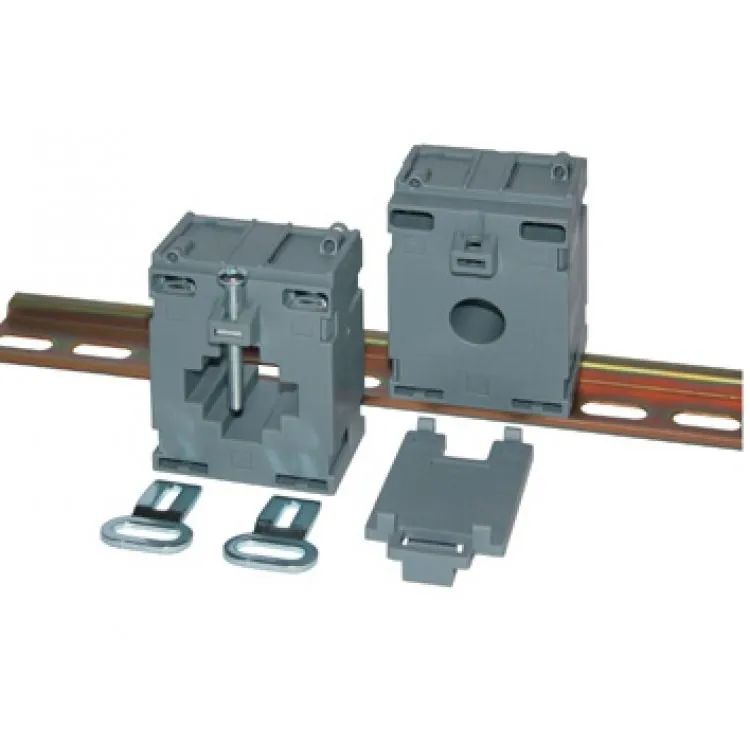

Hobut's 14 Series (CT141 & CT143) offers moulded case current transformers for transforming various primary currents into 5A or 1A standard secondary using up to 30 x 10mm or 20 x 20mm busbars, or cables up to 24mm. Primary currents range from 60A to 500A and are complete with built-in sealable terminal covers.

Product Features:
  • DIN rail mounting clip supplied
  • Built in sealable terminal covers
  • Mounting feet and busbar screws supplied
  • Narrow width - 50mm

Type Supplied:

Primary Current

Class

VA Rating

25A32.5
30A32.5
40A32.5
50A12.5
60A12.5
80A12.5
100A12.5
120A12.5

Other Classes and VA ratings are available upon request.

Specification

Conformity IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1
Rated System Voltage 0.72/3kV
Continuous Current 1.2 x rated current
Ambient Temperature 30°C to 85°C
