Hobut RCR-V30 Earth Leakage Relay for Single or Three Phase Systems
In stock
£96.00
£115.20 inc. VAT
Hobut RCR-PM-V30 Earth Leakage Relay for Single or Three Phase Systems
RCR PM V30 3

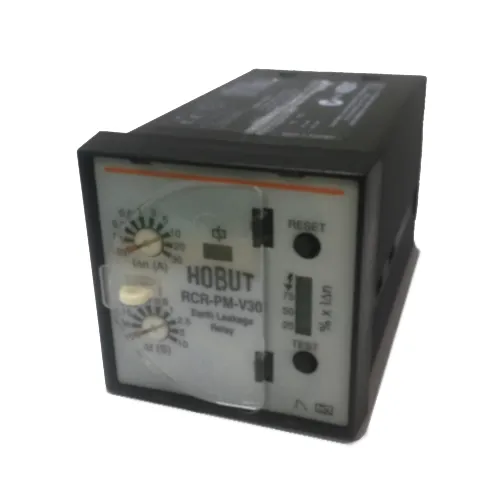

Hobut RCR-PM-V30 Earth Leakage Relay for Single or Three Phase Systems
£140.70
£168.84 inc. VAT
Product Description
Hobut's RCR-PM-V30 Earth Leakage Relay monitors 3 phase electrical systems in an innovative 48mm casing for panel-mounting. The unit measures the earth leakage current of various electrical supplies. Under fault conditions, the unit is able to launch a system shut down or sound an alarm.
Specification
Earth Leakage Relay | Type A |
Power Consumption | 6VA |
Supply Voltage Un (6,7) | 2 - 125V DC (85 - 110% of U) 24, 115, 230V AC (85 - 115 % of Un) |
Output | 1 x SPDT, 1 x SPNO relays |
Terminal Conductor | ≤ 2.5mm² |
Terminal Protection | IP20 |
Ambient Temperature | -20 to +55°C |
Relative Humidity | 95% |
Weight | 190g (AC power supplies), 110g (DC power supplies) |
Time Delay | 0 - 10s |
Sensitivity | 30mA - 30A |
Housing | Black, self-extinguishing noryl UL94 VO (ABS for front plate and rear clip) |
Approvals | IEC60755, 60947, 62020, 61543 |
Mounting | Panel Mount (48 x 48mm) |
