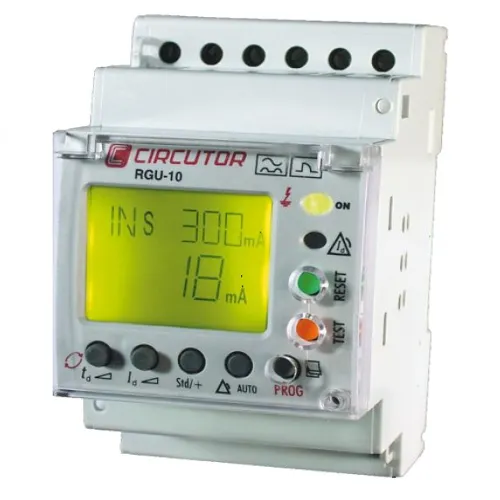

Circutor RGU-10 Residual Current Relay (P11941)
£123.78
£148.54 inc. VAT
Product Description
The RGU-10 Earth Leakage Relay is used for connections with their WG/WGC Current Transformer counter-parts, offering smart protection and electrical service continuity. The immediate leakage value measurements paired with the pre-alarms indications allow for protected line status information, and sufficient preventative maintenance. The measurement of the Current is TRMS and can be programmable for 00.3- 3A or 0.03- 30A to trip the system.
Product Details:
- Delay: 00.2-10s on instantaneous or selective
- Dimensions: 3-DIN Module
- Auxillary Power supply: 230VAC (20% difference)
- Output contacts: 250 Vac, 6A
- Remote signal: Pre-alarm
Specification
AC Power Supply
Consumption | 6 VA |
Frequency | 50 / 60 Hz |
Nominal voltage | 110 - 230 V~ (± 20 %) |
Mechanical Characteristics
Size (W x H x D) | 52.5 x 85 x 67.9 (mm) |
Cable length to be stripped (mm) | 7 |
Torque setting | 0.5-0.6 Nm |
Cable gauge at supply terminals | 0.5 … 2 mm² |
Fastening | DIN Rail |
Weight (kg) | 0,234 |
Environmental characters
Protection Class | IP 20 (terminals), IP 41 (front) |
Relative humidity (without condensation) | 5 … 95 % |
Ambient temperature | -40 … +85 ºC |
Operating temperature | -10 … +50 ºC |
External reset input for tripping
Type | Optocoupled |
Maximum power | 0,7 W |
Maximum voltage | 230 Vca ± 20% |
Standards
Electrical safety, maximum height (m) | 2000 |
Electrical safety, installation category | CAT III 300V ca, IEC 61010 |
Standards | IEC 61008.1, IEC62020, IEC60947-2 Anexo M, IEC 60755 |
Digital Relay Outputs
Nominal load in AC1 | 2500 VA |
Nominal current | 6 A ~ |
Nominal voltage | 250 V ~ |
Maximum current | 15 A ~ |
| Mechanical life | 10 x 10⁶ |
Differential Protection
Sensitivity (I∆n), A | 3 / 5-10-30 (Setup) |
Protection
Safety relay type | Class A super-immunised, high-frequency current filtering |
Circuit breaker type | Contactor or Circuit Breaker + trigger coil |
Differential transformer | External, WG/WGC series |
