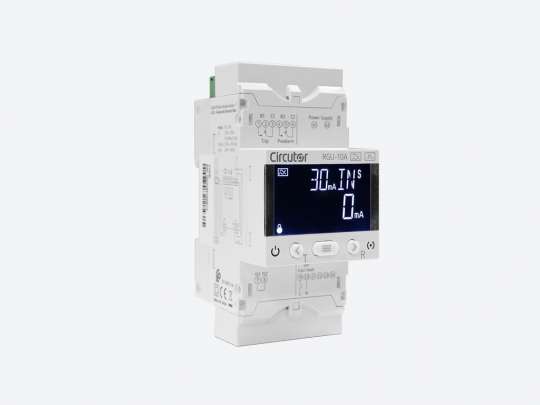

AC POWER SUPPLY

Consumption: 6.5 VA
Frequency: 50 … 60 Hz
Nominal voltage: 230 V~ (± 15 %)

MECHANICAL CHARACTERISTICS

Size (mm) width x height x depth: 52.5 x 118 x 74 (mm)
Screw type: M 2.5
Envelope: Sel-extinguishing V0 plastic
Torque setting: ≤ 0,4 Nm
Cable gauge at power supply terminals: 2.5 mm²
Cable gauge at input and output terminals: 2.5 mm²
Fastening: DIN rail
Weight (kg): 0,186

ENVIRONMENTAL CHARACTERISTICS

Protection class: IP 30 (terminals), IP 40 (front)
Relative humidity (without condensation): 5 … 95 %
Storage temperature: -20 … +70 ºC
Working temperature: -10 … +60 ºC

EXTERNAL RESET INPUT FOR TRIPPING

Maximum voltage: 230 V ~

STANDARDS

Electrical safety, Maximum height (m)2000
Electrical safety, Installation categoryCAT III 300V ca, IEC 61010
Electrical safety, Contamination level/class2
StandardsIEC60947-2-M

USER INTERFACE

LED: 2
Keyboard: 3 keys
Display type: LCD custom (negative)

DIGITAL RELAY OUTPUTS

Quantity: 2
Maximum current: 6 A ~
Mechanical life:10 x 10⁶
Maximum switching capacity: 1500 VA

DIFFERENTIAL PROTECTION

Type: Type A ultra-immunised
Sensitivity (I∆n), A: 0.03 - 0.1 - 0.2. - 0.3 - 0.5 - 0.75 - 1 - 1.5 - 2 - 3 - 5 - 10 - 30 A
Delay time (t∆): INS - [S]-0.1-0.2-0.3-0.4-0.5-0.8-1-3-5 s

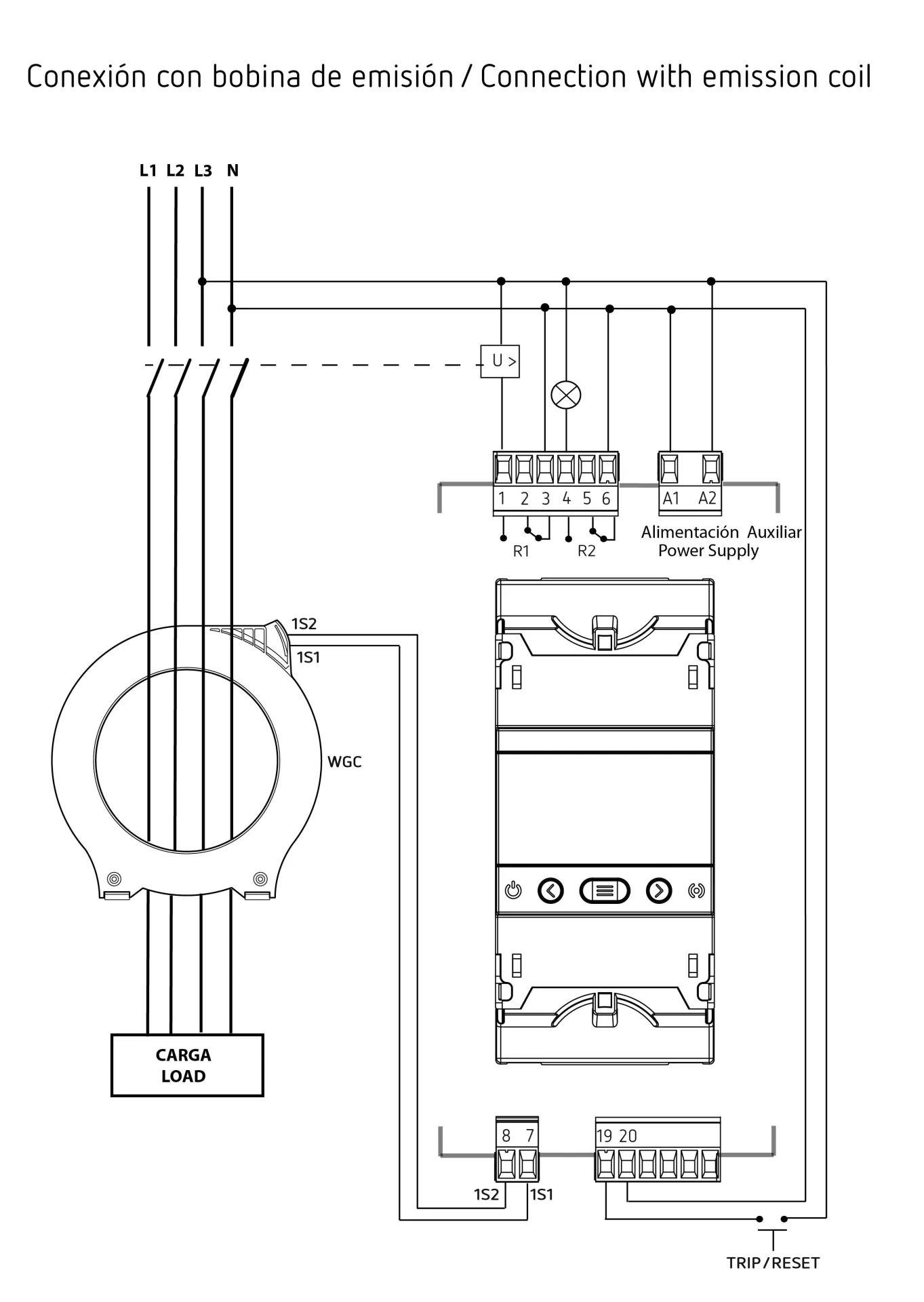

Transformer: External, WGC series
