Circutor RGU-10B Residual Current Relay Type B (P11951)

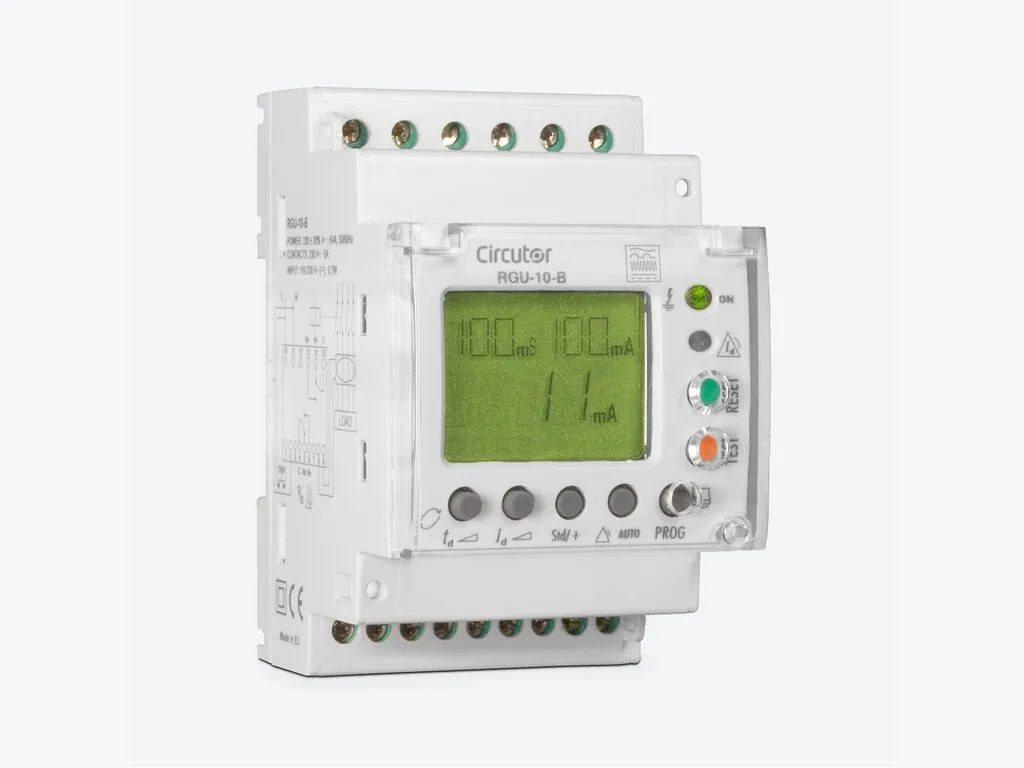

RGU10 B Image
RGU10 B Image 2

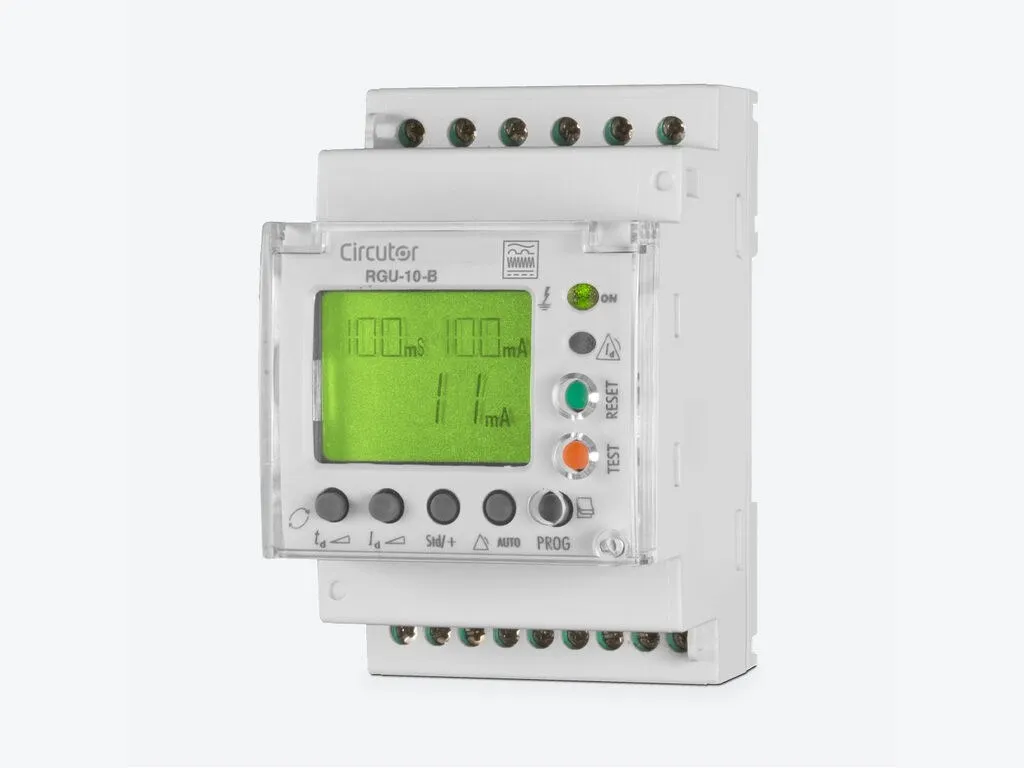

RGU10 B Image 3
Circutor RGU-10B Residual Current Relay Type B (P11951)
£166.00
£199.20 inc. VAT
Product Description
Circutor's RGU-10B Electronic residual current current protection and monitoring relay (IEC 62020) is compatible with the protection transformers of the WGC-TB series. The RGU-10B is the most complete system for monitoring and controlling electrical insulation of type-B installations (IEC 60755).
Product Details:
- Modules: 3-DIN
- Pre-alarm relay: Yes
- Nº relays: 1
- IΔn (A): 0,1…3 A
- Power supply (Vac): 230 Vac
- Delay: 0,1 … 10 s
- Mounting: DIN rail
Specification
AC Power Supply
Consumption | 6 VA |
Frequency | 50 / 60 Hz |
Nominal voltage | 230 V~ (± 20 %) |
Mechanical Characteristics
Size (W x H x D) | 52.5 x 85 x 67.9 (mm) |
Cable length to be stripped (mm) | 7 |
Torque setting | 0.5-0.6 Nm |
Cable gauge at supply terminals | 1-1.5 mm² |
Fastening | DIN Rail |
Weight (kg) | 0.28 |
Environmental characters
Protection Class | IP 20 (terminals), IP 41 (front) |
Relative humidity (without condensation) | 5 … 95 % |
Operating temperature | -10 … +50 ºC |
External reset input for tripping
Type | Optocoupled |
Maximum power | 0,7 W |
Maximum voltage | 230 Vca ± 20% |
Standards
Electrical safety, maximum height (m) | 2000 |
Standards | IEC 60947-2 (M), IEC 62020, IEC 60755 |
Digital Relay Outputs
Nominal load in AC1 | 2500 VA |
Nominal current | 10 A ~ |
Nominal voltage | 250 V ~ |
Maximum current | 15 A ~ |
Differential Protection
Sensitivity (I∆n), A | 0,1 … 3 |
Delay time (t∆) | 0,1 … 10 s |
Protection
Safety relay type | Class B (IEC 60755) |
