Northern Design Power Rail 350 Multi-Function Meter with 5A CT Input

Manufacturer Part No: R350/5A/230

Northern Design Power Rail 350 Multi-Function Meter with 5A CT Input

Manufacturer Part No: R350/5A/230

£92.88

£111.46 inc. VAT

Product Description

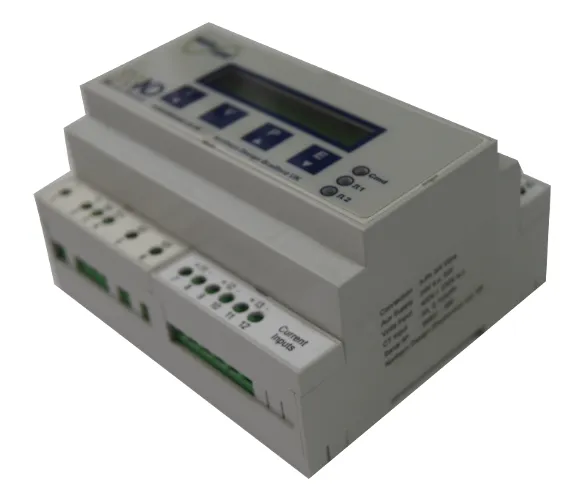

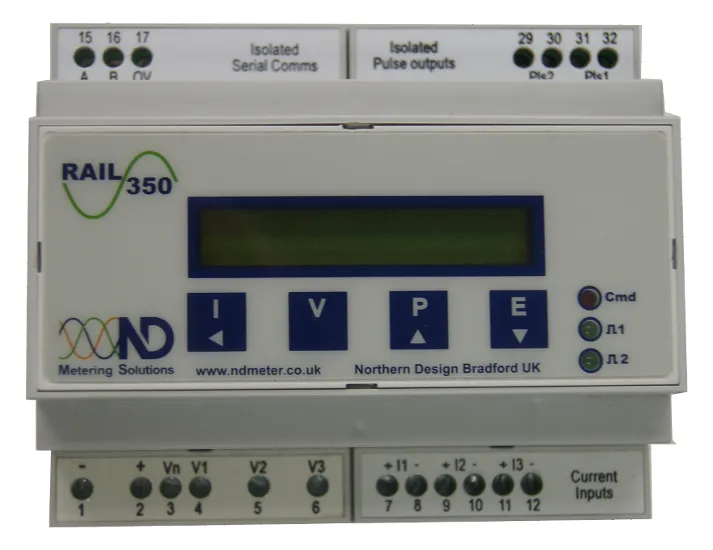

Northern Designs' Rail 350 kWh Meter is a multi-function meter measuring kWh, kVARh, kW, V, A, PF & Hz and is DIN-rail mounting, fitting in a standard MCB enclosure.

The standard features on the Rail 350 are 2 pulse outputs, which can be configured for kWh and kvarh. The standard communication is RS485 Modbus, however the Rail 350 is available with a range of IP communications options like MODBUS TCP and other TCP/IP protocols such as HTTP, FTP, TFTP, SNMP.

The various TCP/IP protocols make this the ideal meter to interface directly with energy management software and building control solutions, without the need for data loggers or concentrators.

Web pages are available on the IP enabled Rail 350, allowing users to view important instantaneous values and access the setup pages should the need arise to change any of the parameters.

Product Features:
  • DIN-rail mount (6 Modules wide)
  • Individual Harmonics to the 15th, THD to the 30th (Via Modbus)
  • Multiple communications options
  • Isolated dual pulse outputs

Specification

Inputs

System

3 Phase 3 or 4 Wire Unbalanced Load

Voltage U

480/277V

110/63V & 208/120V (optional

Current I

5 amp

Measurement Range

Voltage: 20% to 120%
Current: 0.2% to 120%

Frequency Range

Fundamental: 45 to 65Hz
Harmonics: Up to 30th harmonic at 50Hz (Option)
Individual up to the 15th (Option)

Auxiliary Supply

Standard

230V 50/60Hz at 5W max

Option

110V 50/60Hz at 5W max

Accuracy

kWh

Class 1 per EN 62053-21 & BS 8431 ANSI C12.20 Class 0.5

kvarh

Class 2 per EN 62053-23 & BS 8431

kW & kVA

Class 0.25 IEC 60688

kvar

Class 0.5 IEC 60688

Amps & Volts

Class 0.1 IEC 60688

PF

±0.2°

Neutral Current

Class 0.5 IEC 6068

Pulse Outputs

Function

1 pulse per unit of energy

Scaling

Configurable

Pulse duration

0.1 second default (other durations configurable)

Type

N/O volt free contact. Optically isolated.

Contacts

100mA ac/dc max; 70Vdc/33Vac max ; 5W maximum load

Isolation

3.5kV 50Hz 1 minute

General

Operating

-10°C to +55°C

Storage

-25°C to +70°C

Humidity

<75% non-condensing

Environment

IP20

Mechanical

Terminals

Rising cage. 4mm² (12AWG) cable max

Enclosure

DIN 43880, 6 modules wide

Material

Noryl® with fire protection to UL94-V-O. Self extinguishing.

Dimensions

106 x 90 x 58mm (4.2” x 3.5” x 2.3”)

Weight

~ 150 gms (0.33lbs)
