Hobut Micro 19 Split Core Current Transformers with 1A or 5A Secondary Outputs

Manufacturer Part No: CTSCMICRO19

Hobut Micro 19 Split Core Current Transformers with 1A or 5A Secondary Outputs

Manufacturer Part No: CTSCMICRO19

£26.00

£31.20 inc. VAT

Product Description

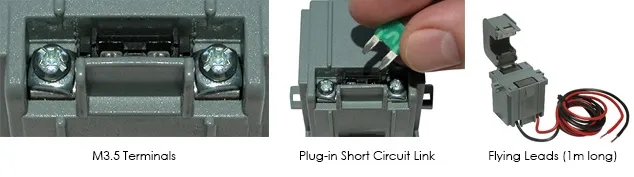

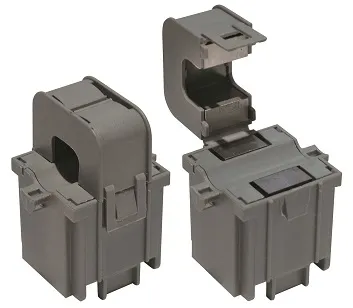

Hobut's Micro 19 range of split-core CTs are amongst the smallest available on the market and can be supplied with a choice of screw clamp terminals, flying leads and unique plug-in short circuit link.

Other options are available upon request (Extra lead length and screws).

Specification

Accuracy Class 1
VA Rating 100A/125A = 1VA, 150A/200A = 1.5VA, 250A = 2VA
Conformity BS EN 60044-1/IEC 60044-1
Rated System Voltage 0.72/3kV
Ambient Temperature Range 30ºC to 55ºC
