ABB A42 111-100 Single-Phase CT Connected MID Meter with Pulse Output (2CMA170555R1000)

Name: ABB A42 111-100 Single-Phase CT Connected MID Meter with Pulse Output (2CMA170555R1000)
Brand: ABB
Price: 192.252 GBP
Availability: BackOrder

ABB

ABB A42 111-100 Single-Phase CT Connected MID Meter with Pulse Output (2CMA170555R1000)

ABB

£160.21

£192.25 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

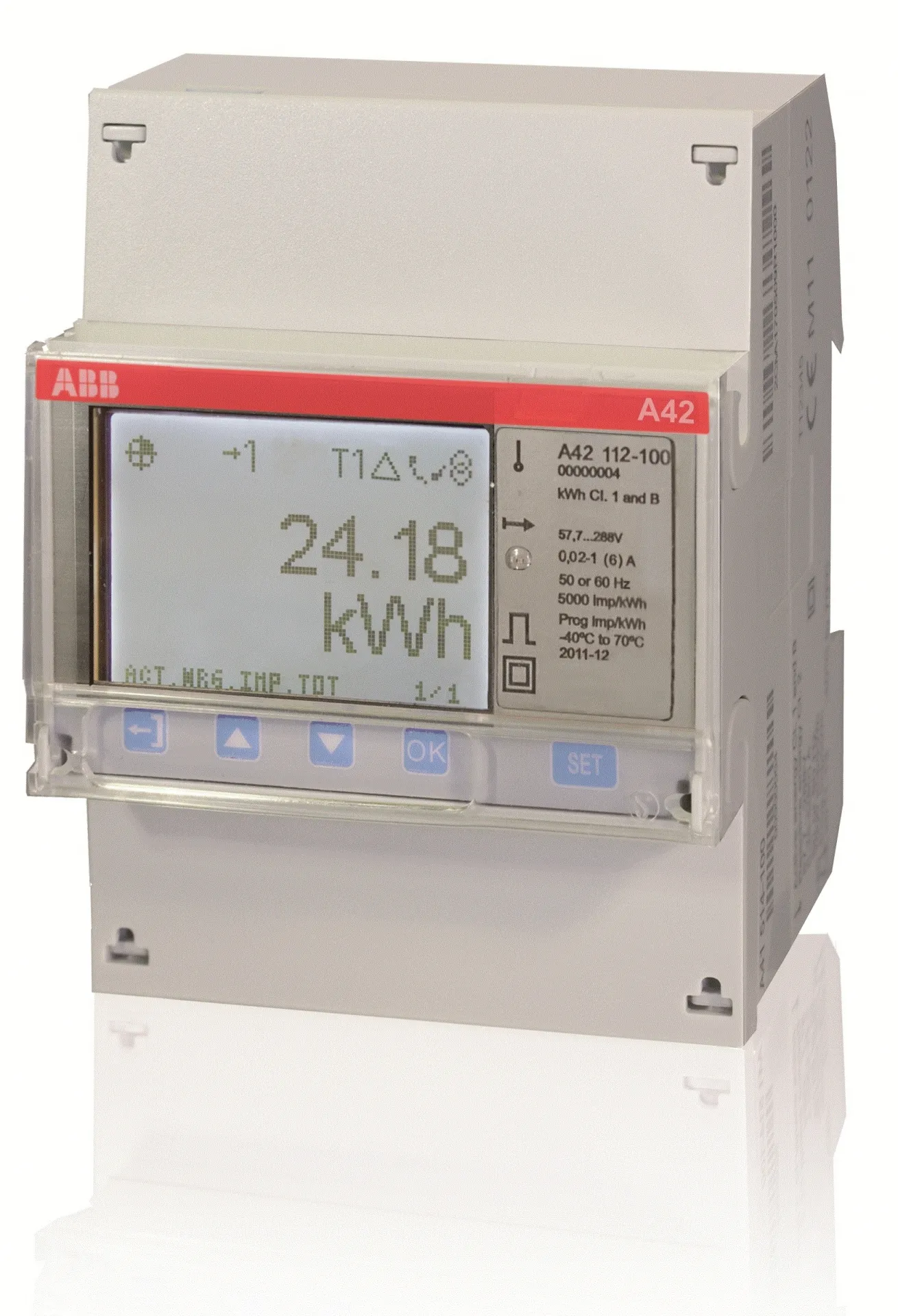

ABB A42 111-100 is a Single Phase (DIN Rail) CT 5A connected meter with the option of a Pulse output/alarm and includes MID certification. It is suited for most of the common applications for reliable and trustworthy metering of energy usage.

Specification

Voltage/Current Inputs

Nominal voltage	230 V AC
Voltage range	57.7 ... 288 VAC (-20% - +15%)
Power dissipation voltage circuits	0.8 VA (0.8 W) total
Power dissipation current circuits	0.001 VA (0.001 W) per phase at 230 V AC and Ib
Base current Ib	-
Rated current In	1 A
Reference current Iref	-
Transitional current Itr	0.05 A
Maximum current Imax	6 A
Minimum current Imin	0.01 A
Starting current Ist	< 1 mA
Terminal wire area	0.5 - 10 mm²
Recommended tightening torque	1.5 Nm

General Data

Frequency	50 or 60 Hz ± 5%
Accuracy Class	B (CL 1)
Active energy	1%
Display of energy	Pixel oriented

Environmental

Operating temperature	40°C - +70°C
Storage temperature	40°C - +85°C
Humidity	75% yearly average, 95% on 30 days/year
Resistance to fire and heat	Terminal 960 °C, cover 650°C (IEC 60695-2-1)
Resistance to water and dust	IP20 on terminal block without protective enclosure and IP51 in a protective enclosure, according to IEC 60529
Mechanical environment	Class M2 in accordance with the Measuring Instrument Directive (MID). (2004/22/EC)
Electromagnetic environment	Class E2 in accordance with the Measuring Instrument Directive (MID), (2004/22/EC)

Outputs

Current	2 - 100 mA
Voltage	5 - 40 V DC
Pulse output frequency	Programmable: 1 - 999999 imp/kWh
Pulse length	Programmable: 10 - 990 ms
Terminal wire area	0.5 - 1 mm²
Recommended tightening torque	0.25 Nm

EMC Compatibility

Standards

EC 62052-11, IEC 62053-21 class 1& 2, IEC 62054-21, GB/T 17215.211-2006, GB/T 17215.321-2008 class 1 & 2, GB/T 17215.322-2008, EN 50470-1, EN 50470-3 category B.

Mechanical

Material

Polycarbonate in transparent front glass, bottom case, upper case and terminal cover.
Glass-reinforced polycarbonate in polycarbonate in terminal cover.

Dimensions

Width	70 mm
Height	97 mm
Depth	65 mm
DIN Modules	7
