Hobut CT75 Series (TASN-248) Three Phase Moulded Case Current Transformers (60 to 160A)

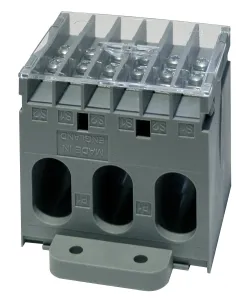

CT75 3 phase moulded case current transformer
Hobut CT75 Series (TASN-248) Three Phase Moulded Case Current Transformers (60 to 160A)
£29.45
£35.34 inc. VAT
Product Description
Hobut's CT75 Three Phase Current Transformers are suitable for primary ranges from 60-150A with 5A secondary. They are supplied with terminal cover and integral foot-mount.
The product has an overall width of 75mm, allowing for installation directly on top of moulded case circuit breakers. They can also be used independently in three-phase applications.
Primary Current |
Burden And Accuracy |
Part No |
60A |
1VA Class 1 |
CT75F-60/5-1/1 |
80A |
1.5VA Class 1 |
CT75F-80/5-1.5/1 |
100A |
1.5VA Class 1 |
CT75F-100/5-1.5/1 |
125A |
2.5VA Class 1 |
CT75F-125/5-2.5/1 |
150A |
2.5VA Class 1 |
CT75F-150/5-2.5/1 |
Specification
| Accuracy | Class 1 |
|---|---|
| Rated System Voltage | 0.72/3kV |
| Ambient Temperature Range | -30ºC to 85ºC |
| Continuous Current | 1.2 x rated current |
| Conformity | IEC185, BS7626, BSEN 60044-1 and IEC 60044-1 |
| Dimensions (W x H x D) | 75 x 80 x 75mm |
Downloads
Ask an expert about the
CT75 (TASN-248)
Ask a question
