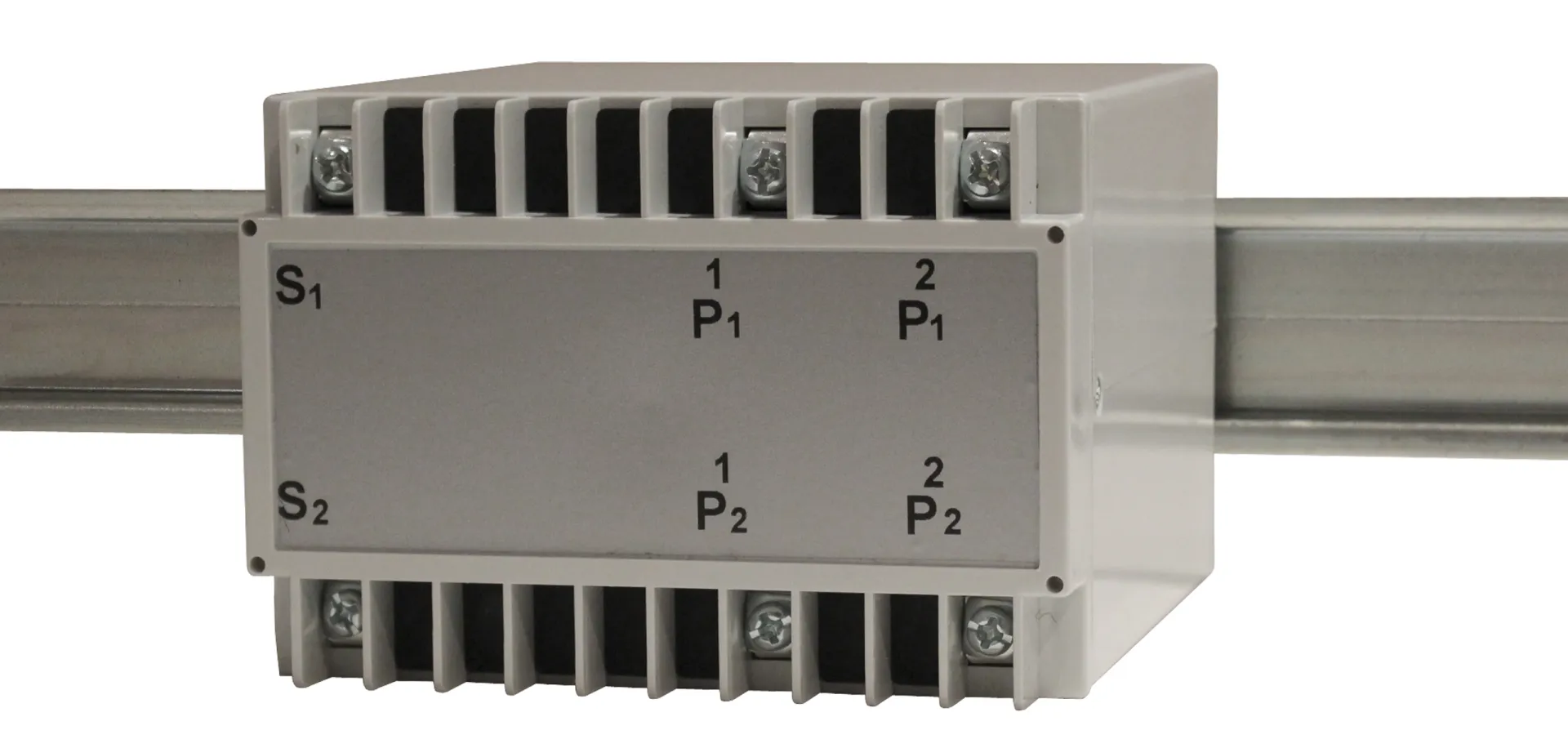

Hobut CTM100 Summation Current Transformer Range with 5A Output

Manufacturer Part No: CTM100

Hobut CTM100 Summation Current Transformer Range with 5A Output

Manufacturer Part No: CTM100

£57.00

£68.40 inc. VAT

Product Description

Hobut CTM100 Summation Current Transformers can sum several independent loads on different of the same systems. Unequal ratios and higher accuracy are available upon request.

Product Features:
  • DIN rail mounted
  • Protected terminals
  • Up to 9 inputs (equal ratio)

Specification

Number of Inputs

Ratio

(5A Secondary)

Class

VA

Part Number

2

5+5=5

1

5

CTM1002X5/5-5/1

3

5+5+5=5

1

5

CTM1003X5/5-5/1

4

5+5+5+5=5

1

5

CTM1004X5/5-5/1

5

5+5+5+5+5=5

1

5

CTM1005X5/5-5/1

6

5+5+5+5+5+5=5

1

5

CTM1006X5/5-5/1

7

5+5+5+5+5+5+5=5

1

5

CTM1007X5/5-5/1

8

5+5+5+5+5+5+5+5=5

1

5

CTM1008X5/5-5/1

9

5+5+5+5+5+5+5+5+5=5

1

5

CTM1009X5/5-5/1

Rated System Voltage 0.72/3kV
Ambient Temperature Range -30ºC to 75ºC
Continuous Current 1.2 x rated current
Conformity EN 60044-1 / EN 61869-2
Dimensions (W x H) 112 x 70mm
