Find out moreVMUOCAI3XXEM Pulse Concentrator Slave Module (VMUC-OC)
VMUOCAI3XXEM
VMU OC MC Connections

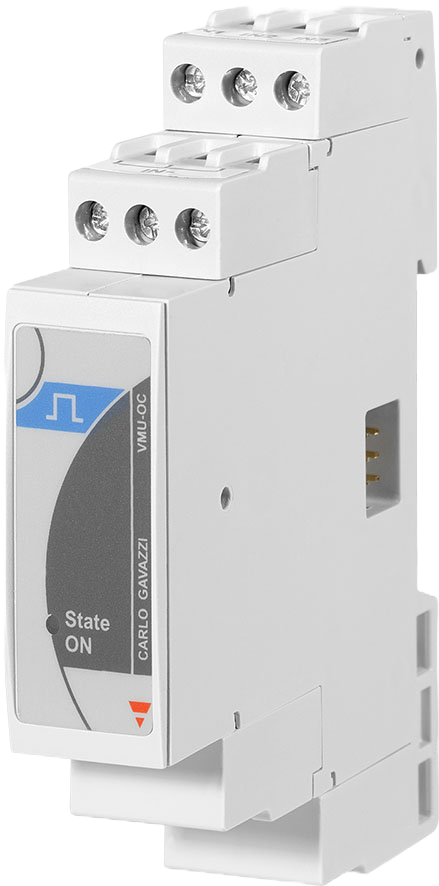

VMUOCAI3XXEM Pulse Concentrator Slave Module (VMUC-OC)
£129.08
£154.90 inc. VAT
Product Description
The VMU-OC module controls up to three digital inputs, connected via local bus and powered by VMU-MC or UWP3.0
Configurable parameters for Inputs:
- Pulse weight
- Unit of measure: kWh, kVAH, kJ, kcal, m3, Nm3, h, pcs, kg
- Input status: Normally open or normally closed
- Minimum pulse duration (5ms to 300ms)
- Configurable parameters for RS485 port:
- Modbus address (1 to 247)
- Baud rate: 9.6 / 19.2 / 38.4 kbps
- Parity: None, Odd, Even
- Stop bits: 1 or 2
Specification
Power supply: 15-24VDC
Number of inputs: 3
Configurable parameters:
Protection: IP40
Cable section: 1.5mm2
Dimensions: 1-DIN
Display: 6-Digit
Weight: 100g
Approvals: UL and CE
