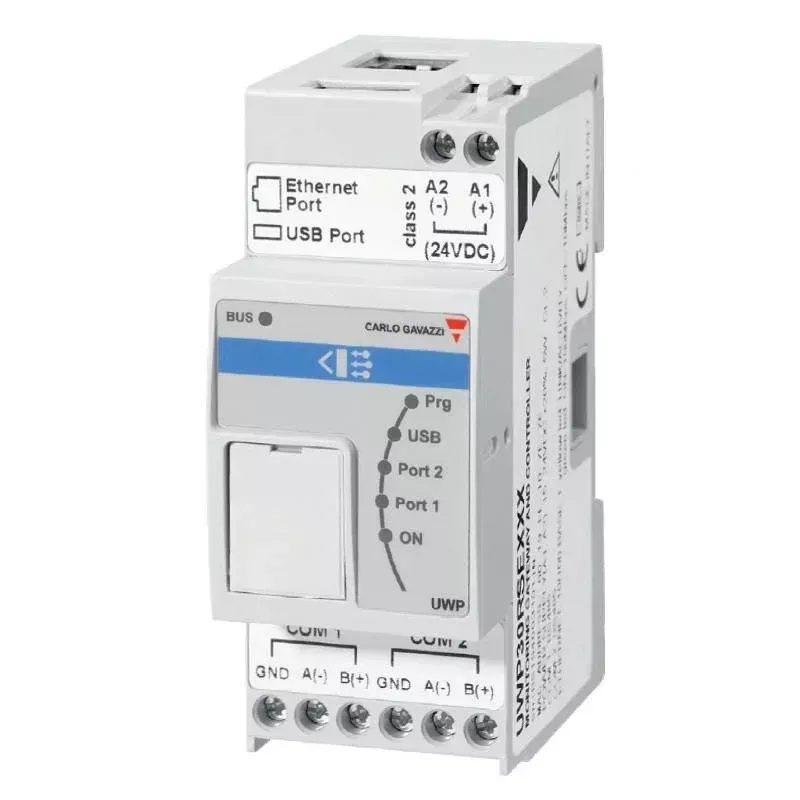

The Carlo Gavazzi UWP 3.0 is the core of your multi-metering system and has a built-in webserver, automatically transferring data from meters on the system via ethernet, that can be viewed through any internet enabled device.

Single or Three Phase meters are daisy chained together through the RS485 Modbus connection, feeding back to the UWP. A network cable can be used to connect the UWP to an internet router, allowing remote access. If internet access is restricted, additional modules are available allowing communication via the mobile network or storage through USB/SD cards of up to 32 GB.

The online interface is simple and intuitive to use, allowing access to instantaneous and historical values which can be analysed on a daily, monthly or annual basis. Cost analysis, event alarms, multi-utility and exporting to Excel are all supported.

The range of data collected is dependent on the meter, but the UWP supports Active & Reactive Energy as well as instantaneous variables such as Power, Frequency and Harmonics.

To view a live demo, simply use the IP address below and login using the details provided:
IP address - 148.253.208.53
Username – UKuser
Password – user

Features:

• Includes all of the necessary software tools to set up and operate the required solution, no subscriptions or additional services are required
• Easy to exchange data with other systems via FTP, SFTP, FTPS, SMTP, Rest-API, MQTT, Modbus, and BACnet
• System can be scaled up
• Fast installation and setup
• Secure against cyber-attacks and computer viruses
• 4GB of storage to store complex configurations and log history and events
• Microsoft Azure certified for IoT
• Powered by AWS
• Compact 2-DIN module
• BTL certified
