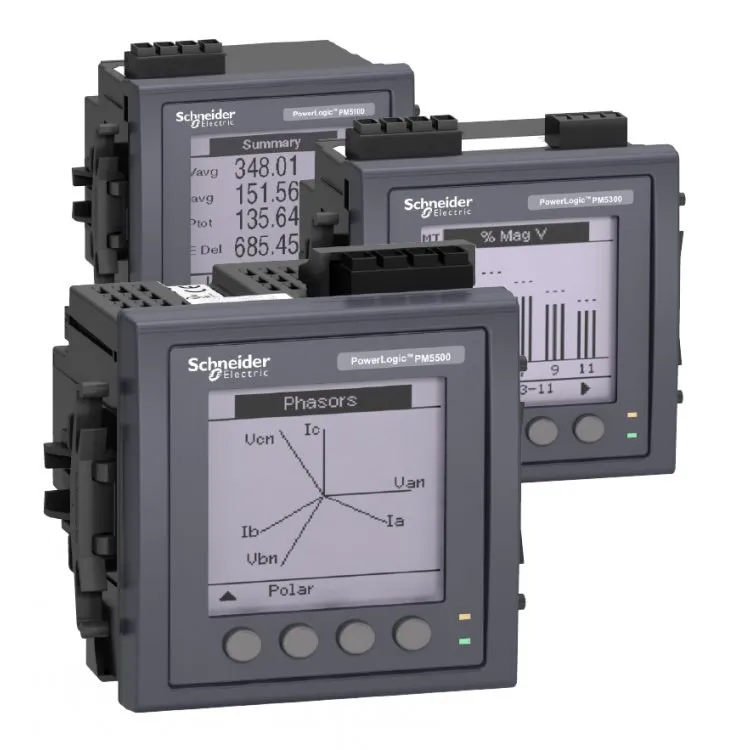

Schneider PowerLogic PM5330 3 Phase Power Meter 31st THD CL0.5 4 Tariffs 2DI/2DO Modbus RS485 with 2 Relays (METSEPM5330)

Manufacturer Part No: METSEPM5330

Schneider PowerLogic PM5330 3 Phase Power Meter 31st THD CL0.5 4 Tariffs 2DI/2DO Modbus RS485 with 2 Relays (METSEPM5330)

Manufacturer Part No: METSEPM5330

£422.20

£506.64 inc. VAT

Product Description

PowerLogic PM5000 is a range of 3 Phase standard DIN 96x96mm panel mount meters. The product features direct connection up to 690V L-L without voltage transformers complaint with CAT III; allowing more free panel space for the user. With a backlit LCD, bar graphs, 6 lines, and 4 concurrent values, the PM5000 series is a simple and effective way to calculate energy.

Product Features:
  • Parameters: I, V, W, Fq, PF, kWh, THD, TDD, VLN, VLL (Harmonics up to 31st for analysis)
  • Features: 4 Tariffs, 2 Digital i/O, 35 configurable alarms with a 1 second response time, 2 relays and Modbus communications via RS485 port (Standard)
  • Accuracy rating- Class 0.5S
  • Real-time clock
  • Memory- 256KB

Specification

Device(EM5330)

Power monitoring

Type of measurements

Active and reactive power (KVAR)
Frequency (Hz)
Power factor (0-1)
Energy (W-KW)
Voltage (V)
Current (A)

Supply voltage

125-250 V DC
100-415 V AC (45-65 Hz)

Network frequency

50 Hz - 60 Hz

[In] rated current

1 A
5 A

Type of network

1P + Neutral
3P (3Phase)
3P + Neutral

Power consumption in VA

10 VA at 415 V

Display type

Backlit LCD

Display resolution

128 x 128 pixels

Sampling rate

64 samples/cycle

Measurement current

10 mA- 9 A

Analogue input type

Voltage (impedance 5 MOhm)
Current (impedance 0.3 mOhm)

Measurement voltage

20/400 V AC 45-65 Hz between phase and neutral
35/690 V AC 45-65 Hz between phases

Frequency measurement range

45-65 Hz

Number of inputs

2 digital

Measurement accuracy

+/- 0.5 % voltage
+/- 0.5 % current
+/- 0.005 % power factor
+/- 0.05 % frequency
+/- 0.5 % apparent power
+/- 0.5 % active power
+/- 2 % reactive energy
+/- 0.5 % active energy

Accuracy class

Class 0.5S (active energy according to IEC 62053-22)

Number of outputs

2 digital
2 relay

Communication port protocol

Modbus RTU

Communication port support

Modbus RTU

Data recording

Data logs
Event logs
Min/max of instantaneous values
Time stamping
Alarm logs
Maintenance logs

Memory capacity

256 kB

Mounting mode

Flush-mounted

Mounting support

Framework

Standards

IEC 60529
IEC 61557-12
IEC 62053-22
EN 50470-1
EN 50470-3
IEC 62053-24

Width

96 mm

Depth

72 mm

Height

96 mm

Product weight

430 g
