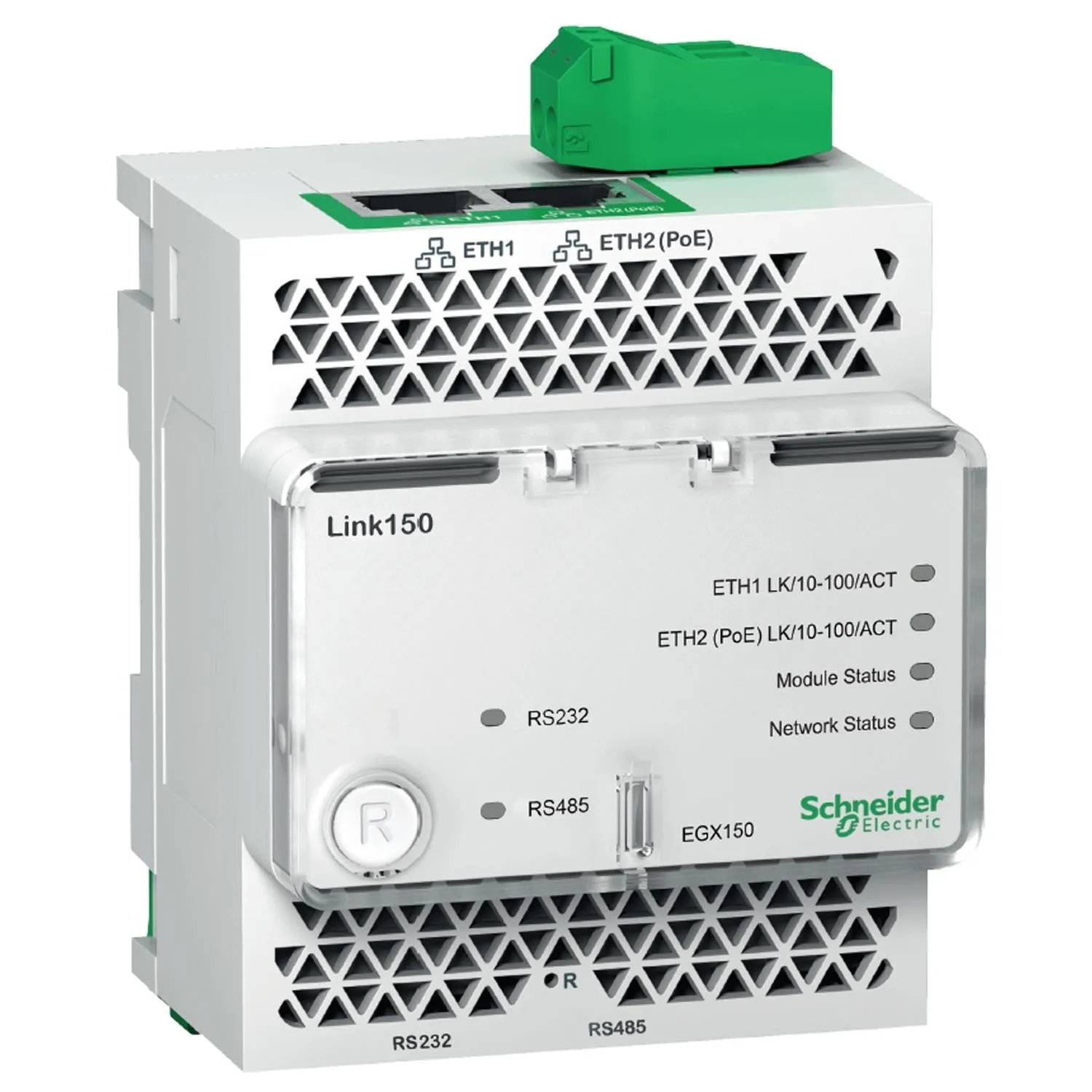

Schneider EGX150 Ethernet Gateway (Link150)

Name: Schneider EGX150 Ethernet Gateway (Link150)
Brand: Schneider Electric
Price: 773.052 GBP
Availability: InStock

Schneider Electric

Schneider EGX150 Ethernet Gateway (Link150)

Schneider Electric

£644.21

£773.05 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

The Schneider Link150 Ethernet gateway from Schneider Electric provides fast, reliable Ethernet connectivity in the most demanding applications. The gateway supports products such as meters, monitors, trip units and motor controls that want to communicate data quickly and efficiently.

Specification

Technical

Weight	175 g (6.17 oz) without packing
Height (W x H x D)	105 x 72 x 71 mm (4.13 x 2.83 x 2.79 in)
Mounting	DIN rail
Power-over-Ethernet (PoE)	Class 3
Power Supply	24 V DC (-20/+10%) or Power over Ethernet (PoE Class 3 IEEE 802.3 af) at 15 W
Consumption (typical)	24 V DC, 130 mA at 20 °C PoE 48 V DC, 65 mA at 20 °C
Ambient operating temperature	-25 to +70 °C (-13 to +158 °F)
Ambient storage temperature	-40 to +85 °C (-40 to +185 °F)
Humidity rating	5 to 95 % relative humidity (without condensation) at +55ºC
Pollution Degree	Level 2
IP Ratings	On the front panel (wall-mounted enclosure): IP4x Connectors: IP20 Other parts: IP30

Serial ports

Number of ports	2 (1 available at a time)
Types of ports	RS232 or RS485 (2-wire or 4-wire), depending on settings
Protocol	Modbus, Serial
Baud rates	19200 bps (factory setting), 2400 bps, 4800 bps, 9600 bps, 38400 bps, 56000 bps, 57600 bps
Maximum number of connected devices	32 (directly) 247 (indirectly)
