Schneider Electric PM8000 Panel Mount Power Meter (METSEPM8240)

Name: Schneider Electric PM8000 Panel Mount Power Meter (METSEPM8240)
Brand: Schneider Electric
Price: 1954.848 GBP
Availability: InStock

Schneider Electric

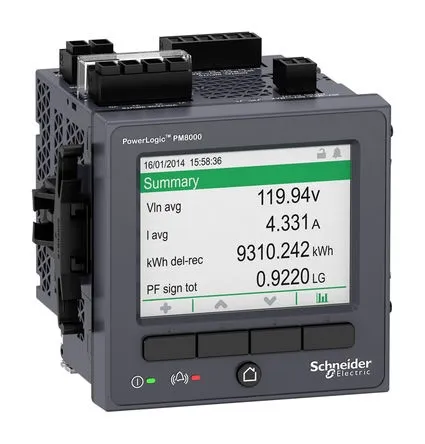

Schneider Electric PM8000 Panel Mount Power Meter (METSEPM8240)

Schneider Electric

£1,629.04

£1,954.85 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

Schneider Electric PM8000 series meters help you improve energy efficiency, sub-bill or allocate costs and improve productivity. These improvements are done by tracking consumption and identifying conditions that could pose risks to equipment and processes. The power meters are easy to install and have simple networking, making energy information accessible, while integration with StruxureWare applications makes information relevant and actionable (FTP Functionality in COMTRADE Format - IEC 60255-24 edition 2001-05).

Product Features:

1A or 5A Current Transformer connected
Class 0.2S accuracy IEC 62053-22
Minimum/maximum data logging
Historical trend logging for energy, demand, power factor or any other parameter
Event logging
Configurable alarms; to trigger recording, perform control, send email or text messages
Dual-port Ethernet supports daisy-chaining, redundant loops and multiple protocols
CT and VT polarity reversible via front panel, web page or software
RS485 serial port
Ethernet-to-serial gateway
Modbus master functionality

Specification

Electrical

Type of measurement	True rms to 256 samples per cycle
Data update rate	1/2 cycle or 1 second
Measurement accuracy
Current, voltage, active power, frequency:	Class 0.2 as per IEC 61557-12
Powerfactor	Class 0.5 as per IEC 61557-12
Active energy	Class 0.2S IEC 62053-22 (In=5 A) Class 0.2 IEC 61557-12, ANSI C12.20 Class 0.2
Reactive energy	Class 0.5S IEC 62053-24
Input-voltage characteristics
Specified accuracy voltage	57 V L-N/100 V L-L to 400 V L-N/690 V L-L
Impedance	5 M per phase
Specified accuracy frequency	42 Hz to 69 Hz (50/60 Hz nominal)
Limit range of operation	20 Hz to 450Hz
Input-current characteristics
Rated nominal current	1 A (0.5S), 5 A (0.2S) , 10 A (0.2 ANSI)
Specified accuracy current range	Starting Current: 5 mA Accurate Range: 50 mA - 10 A
Permissible overload	200 A rms for 0.5S, non-recurring
Impedance	0.0003 per phase
Burden	0.024 VA at 10 A
Power supply
AC	90-415 V AC ±10 % (50/60 Hz ± 10 %)
DC	120-300 V DC ±10 %
Ride-through time	100 ms (6 cycles at 60 Hz) min., any condition 200 ms (12 cycles at 60 Hz) typ., 120 V AC 500 ms (30 cycles at 60 Hz) typ., 415 V AC
Burden	Meter Only: 18 VA max at 415 V AC, 6 W at 300 V DC Fully optioned meter: 36 VA max at 415 V AC, 17 W at 300 V DC.
Inputs/outputs
Meter base only	3 form A digital inputs (30 V AC/60 V DC) 1 form A (KY) solid state digital output (30V AC/60 V DC, 75 mA).
Optional	● Digital - 6 form A digital inputs (30 V AC / 60 V DC) wetted + 2 form C relay outputs (250 V AC / 30 V DC, 8 A at 250 V AC or 5 A at 24 V DC) ● Analogue - 4 analogue inputs (4-20 mA, 0-30 V DC) + 2 analogue outputs (4-20 mA, 0-10 V DC).

Mechanical

Weight	Class 0.2 as per IEC 61557-12
IP degree of protection	Class 0.5 as per IEC 61557-12
Dimensions	Panel mount model: 96 x 96 x 77.5 mm DIN model: 90.5 x 90.5 x 90.8 mm Remote display: 96 x 96 x 27 mm IO modules: 90.5 x 90.5 x 22 mm

Environmental

Operating temperature	-25 ºC to 70 ºC
Remote display unit	-25 ºC to 60 ºC
Storage temperature	-40 ºC to 85 ºC
Humidity rating	5 % to 95 % non-condensing
Installation category	III
Operating altitude (maximum)	3000 m above sea level

Safety

Safety construction

IEC/EN 61010-1 ed.3, CAT III, 400 V L-N / 690 V L-L
UL 61010-1 ed.3 and CSA-C22.2 No. 61010-1 ed.3, CAT
III, 347 V L-N / 600 V L-L
IEC/EN 62052-11, protective class II

Communication

Ethernet to serial line gateway	Communicates directly with up to 32 unit load ION slave devices.
Web sever	Customisable pages, new page creation capabilities, HTML/XML compatible
Serial port RS485	Baud rates of 2400 to 115200, pluggable screw terminal connector.
Ethernet port(s)	2 x 10/100BASE-TX, RJ45 connector (UTP)
Protocol	Modbus, ION, DNP3, IEC 61850, HTTP, FTP, SNMP, SMTP, DPWS, RSTP, NTP, SNTP, GPSprotocols.
