RIK36 5A Rogowski Integrator with Power Supply (Set of Three Coils)

Manufacturer Part No: RIK36-5A

RIK36 5A Rogowski Integrator with Power Supply (Set of Three Coils)

Manufacturer Part No: RIK36-5A

£750.00

£900.00 inc. VAT

Product Description

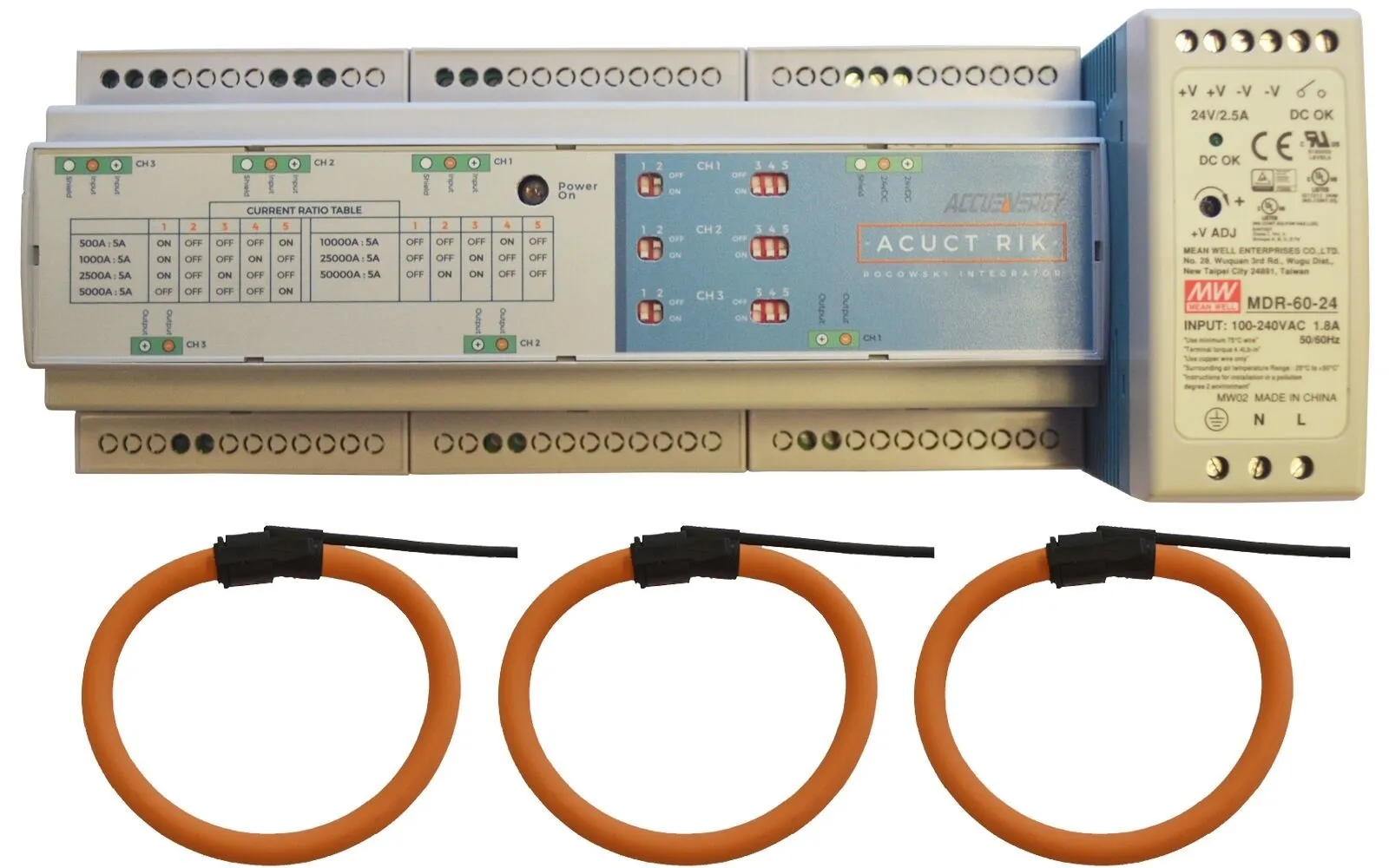

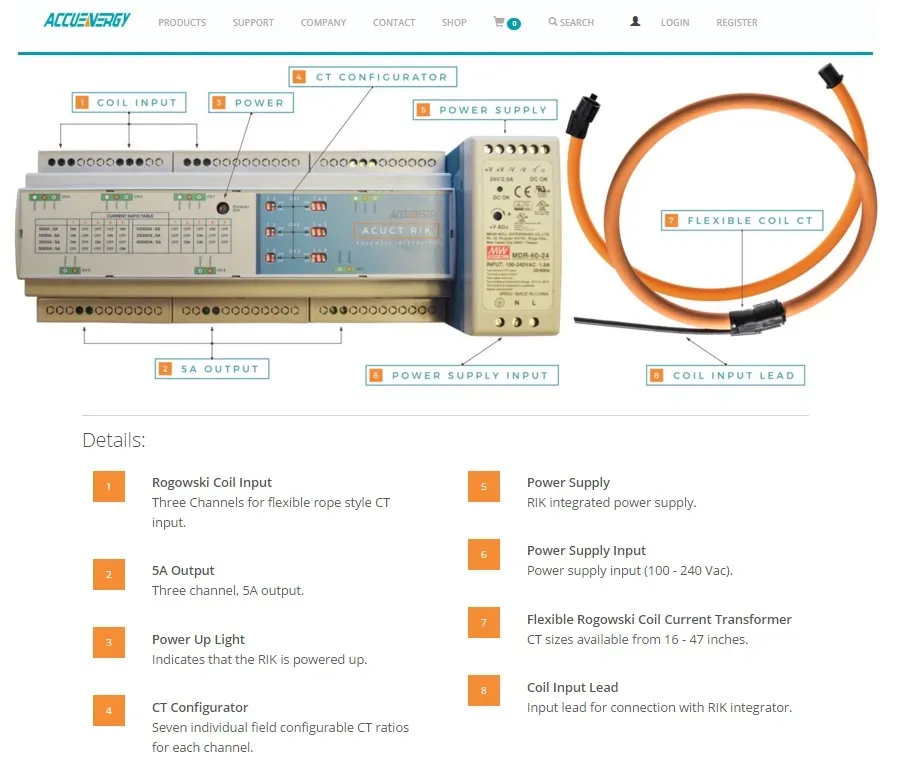

The Accuenergy Rogowski Integrator Kit (RIK) provides users with an easy-to-install, plug-n-play solution to be used with any power meters or equipment with a 5A current transformer input. Meaning the RIK will allow for the installation of Rogowski coil CTs in a variety of applications/configurations where spacial constraints may limit the use of other CT solutions. The RIK kit is designed around a three-channel 5A output integrator and includes with it: three Accuenergy Rogowski coil current sensors, and one power supply. All of these parts are further configurable for the needs of many applications.

Product Features:
  • Flexible rope-like current sensor, designed to easily fit into panels or busbars where space may be limited.
  • 0-5A rated output that works with any power meter or equipment with 5A nominal current transformer input.
  • Current sensing range from 2.5A to 50,000A to fit all systems.
  • Seven field-configurable CT ratios: 500A,1kA, 2.5kA, 5kA, 10kA, 25kA, 50kA.
  • Individual CT ratios can be configured for each channel. Works in any single-phase application with different current ratings.
  • Works in both 50Hz and 60Hz systems.

Specification

Current Measurement Range

2.5A - 60000A

Output Current

0 - 6A RMS (0 - 5ARMS Nominal)

Sensing Range

500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (user selectable)

Maximum Burden

1.8VA/channel

Maximum Output Impedance

50mΩ

Measurement Channels

3 (three-phase or single-phase)

Frequency

45Hz to 65Hz

Accuracy

±1% Full Scale Error

Channel Cross Talk

< -60dB

Maximum Operating Temperature

55°C (131°F)

Rogowski CT Specifications

RIK16-5A

RIK24-5A

RIK36-5A

RIK47-5A

Window Diameter Size (in)

4.17

7.01

10.67

14.53

Window Diameter Size (mm)

106

178

271

369

Length (in)

15.75

23.62

35.43

47.24

Length (mm)

400

600

900

1200
