Product Description

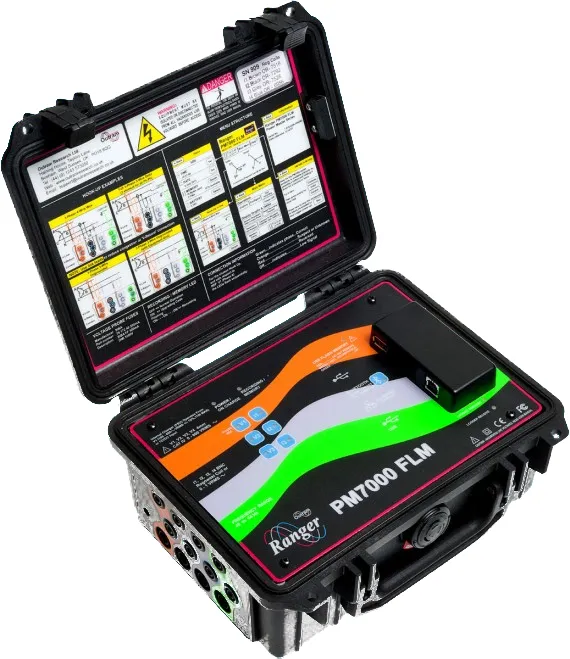

Outram's PM7000 Power Quality Analyser is a three phase device that monitors waveform, harmonic, flicker and power quality. 4 voltage input channels are available, measuring 0 to 600 Vac with 4 current input channels for use with voltage output current clamps or the supplied Rogowski Coil sensors. Twelve connection configurations set for 3 phase, 2 phase and single phase measurements are pre-stored onto the unit. Requirements for set ups and math calculations can be altered and saved to non-volatile memory.

Specification

Input Voltage	4 input channels. 0-600Vac or 0-1000Vac (if internal AC power supply disconnected). Sensors: In-line shrouded 4mm banana sockets. Fused voltage leads, crocodile clip.
Input Current	4 input channels. Sensors: Two ranges on two types. Menu Selectable Rogowski coil 0-6000A, 0-400A, or Voltage Type 0-1 Vac. Safety BNC Socket. Phase reversal in software.
Five distinct simultaneous Recording Systems	Waveform capture: High Speed sampling on all inputs. Troubleshooting: Utilising the patented single cycle Adaptive StoreTM to capture comprehensive detail over long recording periods on up to 32 selected parameters. General Parameter Analysis / Trends: > 470 parameters recorded automatically and simultaneously enabling reporting to recognized Standards. RMS Event Database: Monitoring for ‘official’ power quality events such as sags/surges/interruptions. Fault Level (optional): ½ cycle Peak Fault Level, RMS Break Fault Level at 50-90ms and ½ cycle. Results dependent on presence of abrupt voltage induced current disturbances > 0.15%. Downstream Motor Contribution.
Accuracy	0.2%. 0.1% in reference range 20-30°C (excluding sensors). +/-2LSB.
Resolution	Programmable to 0.1 Vac and 0.1 Aac, 0.01V high resolution mode.
Troubleshooting Maths Functions	AC Single Phase Installation: RMS, Stray Voltage RMS Hi Res < 35V, (line-neutral, line-line where appropriate). Real power W, Reactive Power VARS, Apparent Power VA, Power Factor PF, Displacement Power Factor, Phase Angle, Frequency, Instantaneous Flicker Sensation, Short Term & Long Term Perceptibility, Flicker Flag, Distortion Power.AC 2 (split) Phase Installation: Real Power, Reactive Power VARS, Apparent Power, Power Factor. AC 3 Phase Installation (Delta, Wye and variants): Real Power, Reactive Power VARS, Apparent Power, Power Factor, Voltage Unbalance, (Conventional & Sequential Components), Current Unbalance. Distortion Power, Positive Sequence Fundamental Real & Reactive Power (IEEE1459). Harmonics: Odds, Evens, Triplens, Individual Harmonics value and % and Harmonic Direction to the 50th, K Factor, % Total Harmonic Distortion, Total Harmonic Value. Individual Harmonics to the 127th and Interharmonics are optional. Symmetrical Components: Positive, negative, zero sequence: NPS, NPS/PPS (Voltage and Current), ZPS, ZPS/PPS (Voltage). Other Maths Options: Channel X * Constant, Channel X / Channel Y, Filtered Channel X, Internal Temperature, On Charge, Battery Volts.
Waveform Capture	Sample rate - up to 1.2288 Ms/s in the PM7000T (~ 24,576 samples/cycle at 50 Hz) on 8 channels. Events examined, Ranked & stored inreal time.
Selectable waveform parameters	Wave Retention Basis: Greatest disturbances (automatic ranking and low rank discard) and first past a threshold. Capture wave bracket: Wave Sets: from 20ms up to 60secs. Can be contiguous; no re-arming. Signals to be captured: offending wave / complementary current or voltage, All Voltages, All Currents. Triggers to be used: Transient, Ring, Notch, Sag, Surge, THD Volts, THD Current. Wave Allocation: Waves allocated across trigger functions.
Sampling	PM7000S (Standard): 19.2k Samples per sec PM7000H (High speed): 153.6k Samples per sec PM7000T (Turbo): 1,228.8k Samples per sec Also records automatically at 60Hz
Memory	128MB Flash memory for all files. 32MB RAM for high speed waveform capture data, 64MB working RAM. Expansion with USB Memory Device. Firmware (program memory) - Flash upgradeable 2MB User Preferences - Stored in non-volatile Flash Memory
Communications	Bluetooth: Wireless interface (isolated). PMGateway App.: Enables Android mobile phone to act as a Gateway. Send data files to your inbox or Dropbox, start and stop recordings. USB: Memory module interface (non-isolated). USB: Serial interface to PC (isolated > 2.5kV) download to PC & control through Pronto for Windows. Ethernet: Connectivity through local network. Download to PC. Compatible with iHost. Protocol: MODBUS ASCII.
Power	Requires 100-600 VRMS, 15 W Max from Phase A voltage measurement (40 - 64Hz Rated power consumption 11Watts) or separate power supply at 12Vdc, 6 W. Burden: Normally <10 VA from Phase A. If a charger is used the Power Supply is automatically disconnected from Phase A (input impedance per phase 32MOhms).
Battery Capacity	2100mAhrs (5 HI-Temp NiMH batteries). Battery Ride Through: Ten minutes at a time.
Measurement & Reporting Standards	IEC 61000-4-15, IEC 61000-4-7, IEC 61000-4-30, IEEE1453 (Flicker), IEEE1459, IEEE100, Report to EN50160, G5/4.
Safety & Standards	IEC 61010, (600v Cat. IV, pollution level 2, 1000V CAT III if PSU fuses removed), CE Fused voltage leads (lead fuses 500mA, 700V, 50kA rupture current), IEC 61326 (EMC).
Internal Fusing	PSU (x2), Charger input, Battery stack, Internal Thermal Switch (x2).
Environmental	IP65. Main unit will tolerate momentary emersion when lid sealed. Leads and their connections are not watertight and for safety reasons we strongly recommend that the operator does not connect and disconnect the unit in wet environments.
Display	Backlit LCD graphic touchscreen display 2.5" x 1.35"
Case	Pelican 1150 Guard Box: Dimensions. 22.9 x19.1 x 11.0cm.
Weight	3.5 kg. without leads and clamps.
Operating Temperature	-20ºC (-4º F) to 60ºC (140º F).
