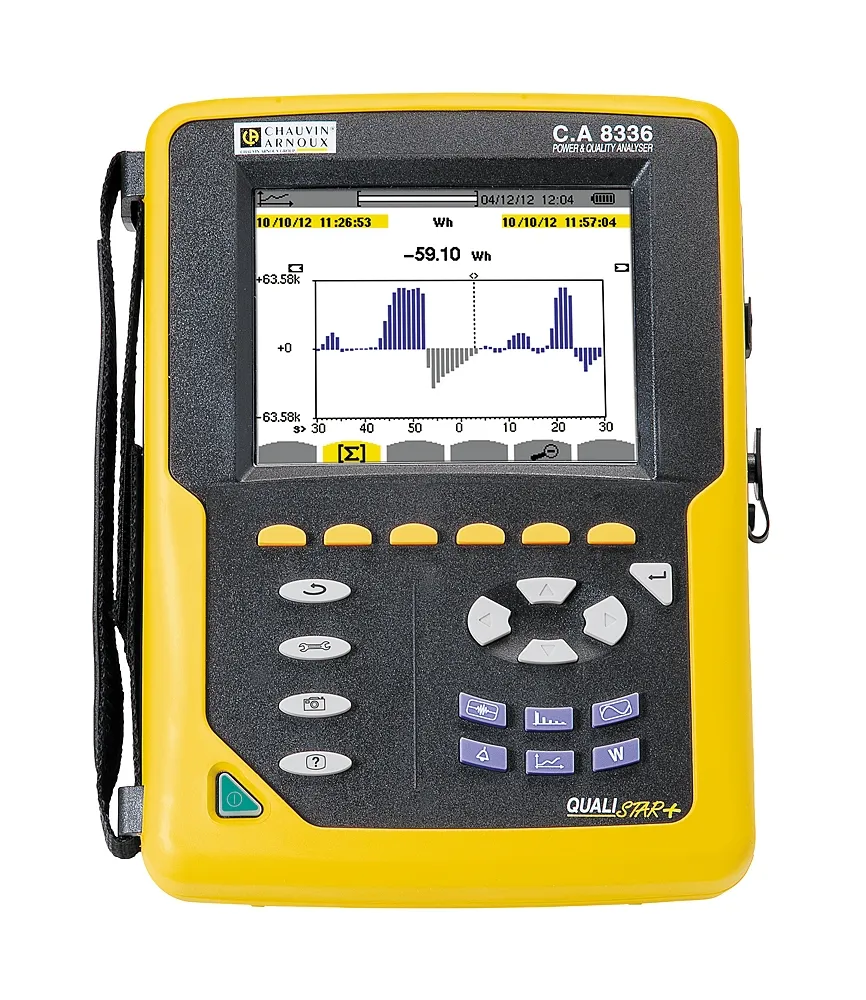

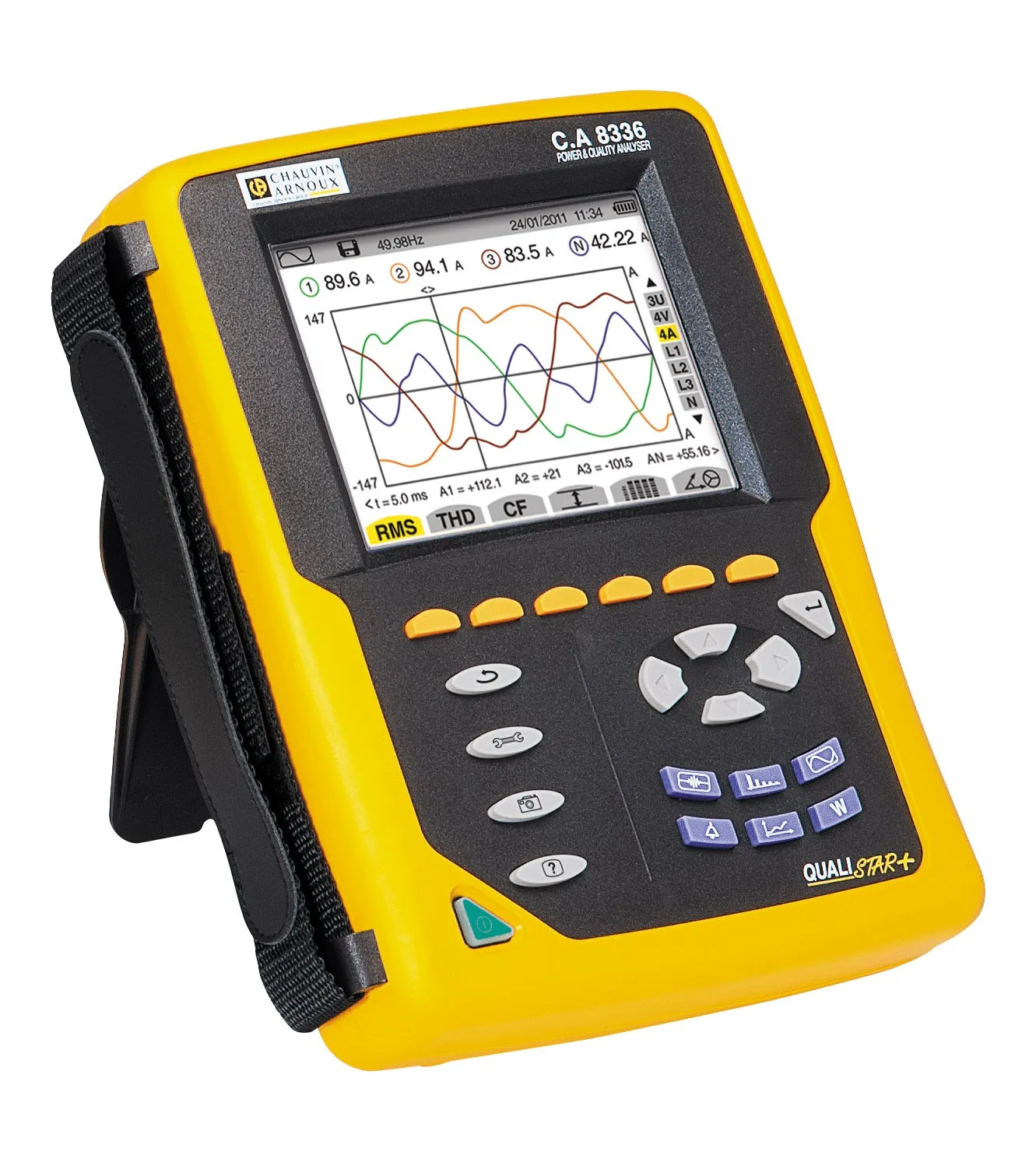

Chauvin Arnoux CA8336 Qualistar+ Power Analyser (P01160591)

Manufacturer Part No: P01160591EUR

Chauvin Arnoux CA8336 Qualistar+ Power Analyser (P01160591)

Manufacturer Part No: P01160591EUR

£3,374.50

£4,049.40 inc. VAT

Product Description

Designed for inspection and maintenance teams in industrial or administrative buildings, the CA8336 Qualistar+ Power Analyser can provide a snapshot of the main electrical network quality characteristics. Easy to handle and precise, this instrument also offers a large number of calculated values and several processing functions.

Product includes: 4 mm banana voltage leads, crocodile clips, a set of colour rings for identifying the leads and inputs, a USB cable, a mains power cable, a mains power pack, a safety data sheet, a multi-language operating manual CD and a PC data analysis software disk. Measures 5 voltage inputs & 4 current inputs

Specification

Model:

CA 8331

C.A 8333

C.A 8336

C.A 8435

Number of Channels

3U/ 4I

4U/4I

Number of Inputs

4V/3I

5V/4I

Voltage (TRMS AC + DC)

2V to 1000V

Voltage Ratio

up to 500kV

Current (TRMS AC+DC) - Range dependant on clamp used - sold separately:

MN93 Current Clamp

MN93: 500mA to 200A AC; MN93A: 0.005A AC to 100A AC

C193 Current Clamp

1A to 1000A AC

Mini-AmpFLEX MA193,200mm

100mA to 10000A AC

30A to 6500A AC

PAC93 Current Clamp

1A to 1300A AC/DC

E3N Current Clamp

50mA to 100A AC/DC

Current Ratio

Up to 60kA

Frequency

40Hz to 69Hz

Power Values

W, VA, var, VAD, PF, DPF, cos φ, tan φ

Energy Values

Wh, varh, VAh, VADh

Harmonics

Yes

THD

Yes, orders 0 to 50, phase

Expert Mode

-

Yes

Transients

-

50

210

Flicker (Pst & Plt)

Yes

Inrush Mode

-

Yes on 4 periods

Yes > 10 minutes

Unbalance

Yes

Recording MIN/MAX

Yes

Recording of a selection of parameters

at the max sampling rate

4 hours to 2 weeks

Few days to several weeks

2 weeks to several years

Alarms

-

4000 of 10 different types

10000 of 40 different types

Peak

Yes

Vectorial Representation

Automatic

Display

Colour 1/4 VGA TFT screen, 320 x 240, diagonal 148mm

Capture of Screens and Curves

12

50

Electrical Safety

IEC 61010 1000V, CAT III / 600V CAT IV

Protection

IP53 / IK08

IP67

Languages

More than 27

Communication Interface

USB

Battery Life

Up to 13 Hours

Power Supply

9.6V NiMH rechargeable battery or external mains charger

Dimensions

240 x 180 x 55mm

270 x 250 x 180mm

Weight

1.9kg

3.7kg
