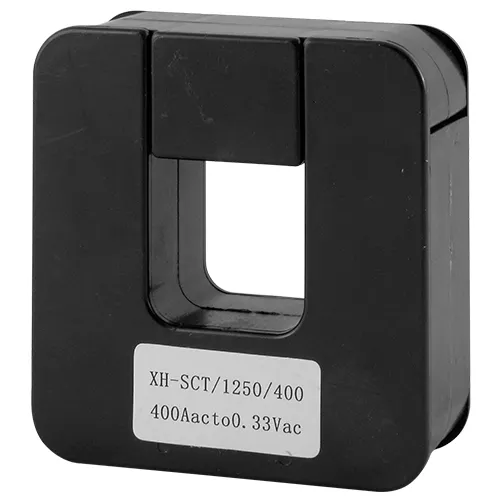

Northern Design SCT32 Current Transformer with 0.333mV Output (400A)

Manufacturer Part No: SCT32-400

Northern Design SCT32 Current Transformer with 0.333mV Output (400A)

Manufacturer Part No: SCT32-400

£49.12

£58.94 inc. VAT

Product Description

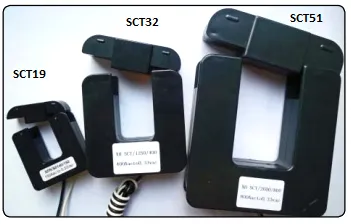

Northern Design's SCT32 is a current transformer designed for retro-fit applications because of its ability to connect with a system without any disconnections. The SCT32 has a 0.333mV output and is equipped with an internal precision resistor across the secondary winding, providing a safe low rate voltage which offers open circuit protection.

Specification

Output at ln

0.333mV

Frequency Range

50-60Hz

Accuracy (0.2ln-1.2ln)

+/- 1%

Phase Error

< 2º @ 0.51n

Temperature Coefficient

60ppm/0ºc

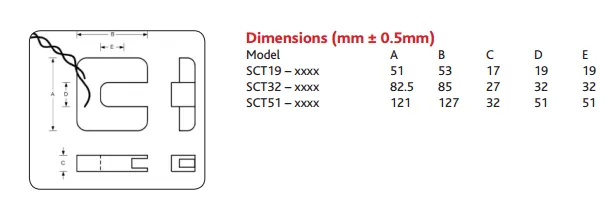

Aperture

32 x 32mm

Enclosure

Plastic to UL94V-0

Insulation Voltage

600V rms

Indoor use only

Altitude < 2000m

Operating Temperature

-15º to +60ºC

Humidity

Max 80% RH @ 30ºC non-condensing

Output Connection

2m Captive twisted pair cable 0.34mmsq. UL 1015

Downloads
