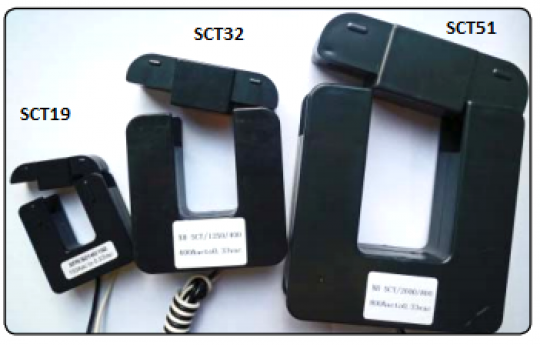

Northern Design SCT19 Current Transformer with 0.333mV Output (50A)
In stock
£41.47
£49.76 inc. VAT
Northern Design SCT19 Current Transformer with 0.333mV Output (150A)
SCT
Northern Design SCT19 Current Transformer with 0.333mV Output (150A)
£41.47
£49.76 inc. VAT
Product Description
Northern Design's SCT19 is a current transformer designed for retro-fit applications because of its ability to connect with a system without any disconnections. It has a 0.333mV output and is equipped with an internal precision resistor across the secondary winding, providing a safe low rate voltage which offers open circuit protection.
Specification
Output at ln | 0.333mV |
Frequency Range | 50-60Hz |
Accuracy (0.2ln-1.2ln) | +/- 1% |
Phase Error | < 2º @ 0.51n |
Temperature Coefficient | 60ppm/0ºc |
Aperture | 19 x 19mm |
Enclosure | Plastic to UL94V-0 |
Insulation Voltage | 600V rms |
Indoor use only | Altitude < 2000m |
Operating Temperature | -15º to +60ºC |
Humidity | Max 80% RH @ 30ºC non-condensing |
Output Connection | 2m Captive twisted pair cable 0.34mmsq. UL 1015 |
