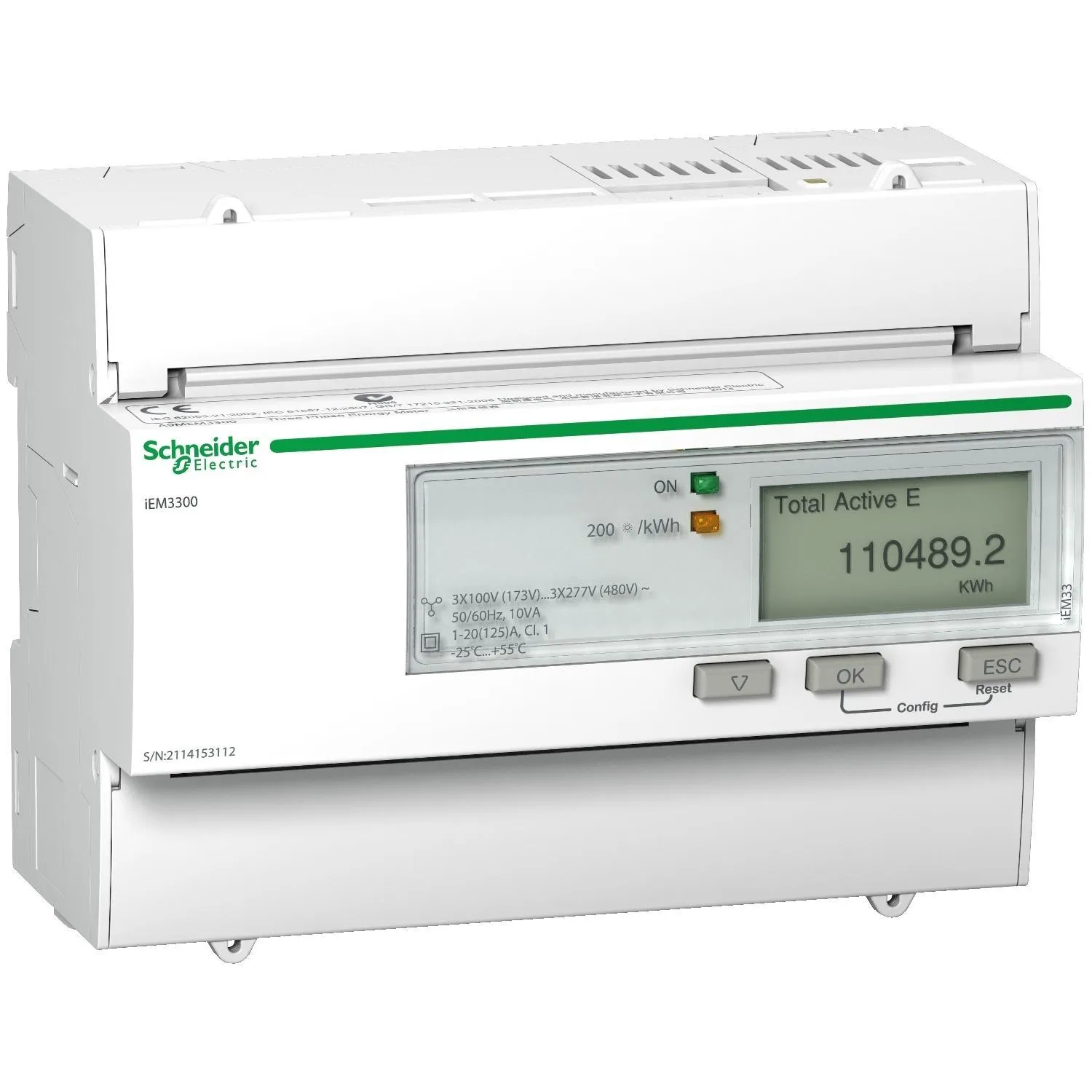

Schneider A9MEM3300 3-Phase 125A Direct Connected DIN Energy Meter

Manufacturer Part No: A9MEM3300

Schneider A9MEM3300 3-Phase 125A Direct Connected DIN Energy Meter

Manufacturer Part No: A9MEM3300

£367.54

£441.05 inc. VAT

Product Description

Schneider's Acti 9 iEM3000 Energy Meter Series from Schneider Electric offers a cost-attractive, competitive range of DIN rail-mounted energy meters ideal for sub-billing and cost allocation applications. Combined with communication systems, like Smart Link, the Acti 9 iEM3000 Series makes it easy to integrate electrical distribution measurements into facility management systems.

Specification

Current (max.) Direct connected (iem31xx)

125A

Meter constant LED

500/kWh

Pulse output

-

Multi-tariff

-

Communication

-

DI/DO

-

MID (EN50470-3)

-

Network

1P+N, 3P, 3P+N

Accuracy class

Class 1 (IEC 62053-21 and IEC61557-12) Class B (EN50470-3)

Wiring capacity

50 mm²

Display max

LCD 99999999.9kWh

Voltage (L-L)

3 x 100/173 V AC to 3 x 277/480 V AC (50/60 Hz)

IP protection

IP40 front panel and IP20 casing

Temperature

-25°C to 55°C (K55)

Product size

8 x 18 mm

Overvoltage and measurement

Category III, Degree of pollution 2

kWh

kVARh

-

Active power

-

Reactive power

-

Currents and voltages

-

Overload alarm

-

Hour counter

-

Downloads
