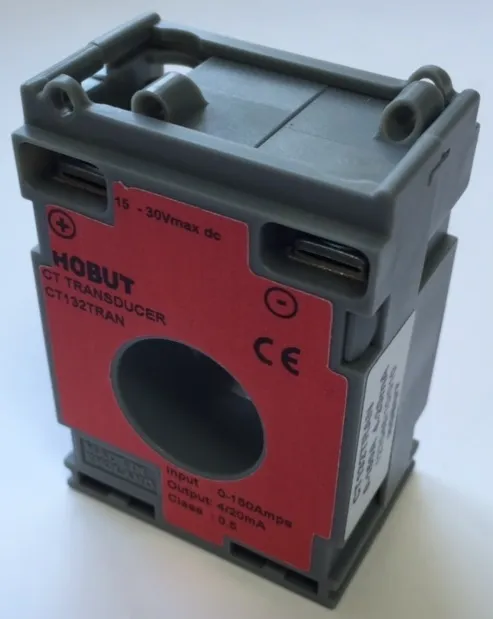

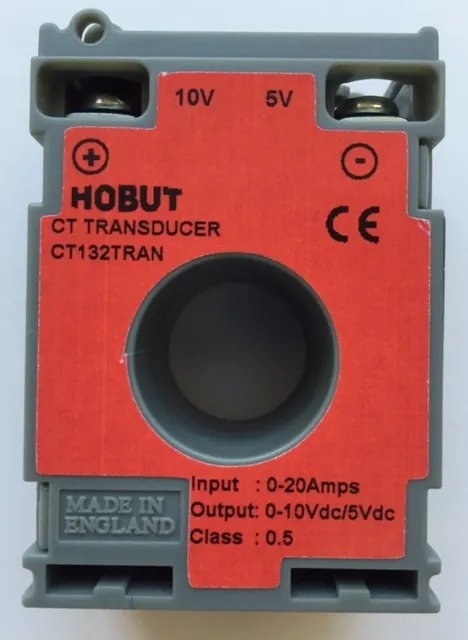

Hobut CT132TRAN Current Transducer with 5/10V Self-Powered Output

Manufacturer Part No: CT132TRAN

Hobut CT132TRAN Current Transducer with 5/10V Self-Powered Output

Manufacturer Part No: CT132TRAN

£45.00

£54.00 inc. VAT

Product Description

Hobut 132RTRAN Current Sensor/Transducer is available with either 0-5V / 0-10V DC self powered output or 4-20mA loop powered output. It is used for transforming low currents of 10A-150A AC into standard DC output signals.

Specification

Accuracy Class 0.5, EN 60688
Response Time 200msec
Output 5V/10V DC (self powered, 100k ohms min load)
Temperature Range -15 C to + 50 C
Isolation 4kV 50Hz (1sec)
Operating Range 0-120% nominal full scale
Frequency Range 45/65Hz
Wiring 2 wire system
Dimensions Aperture: 21mm, width: 45mm, height: 65mm
