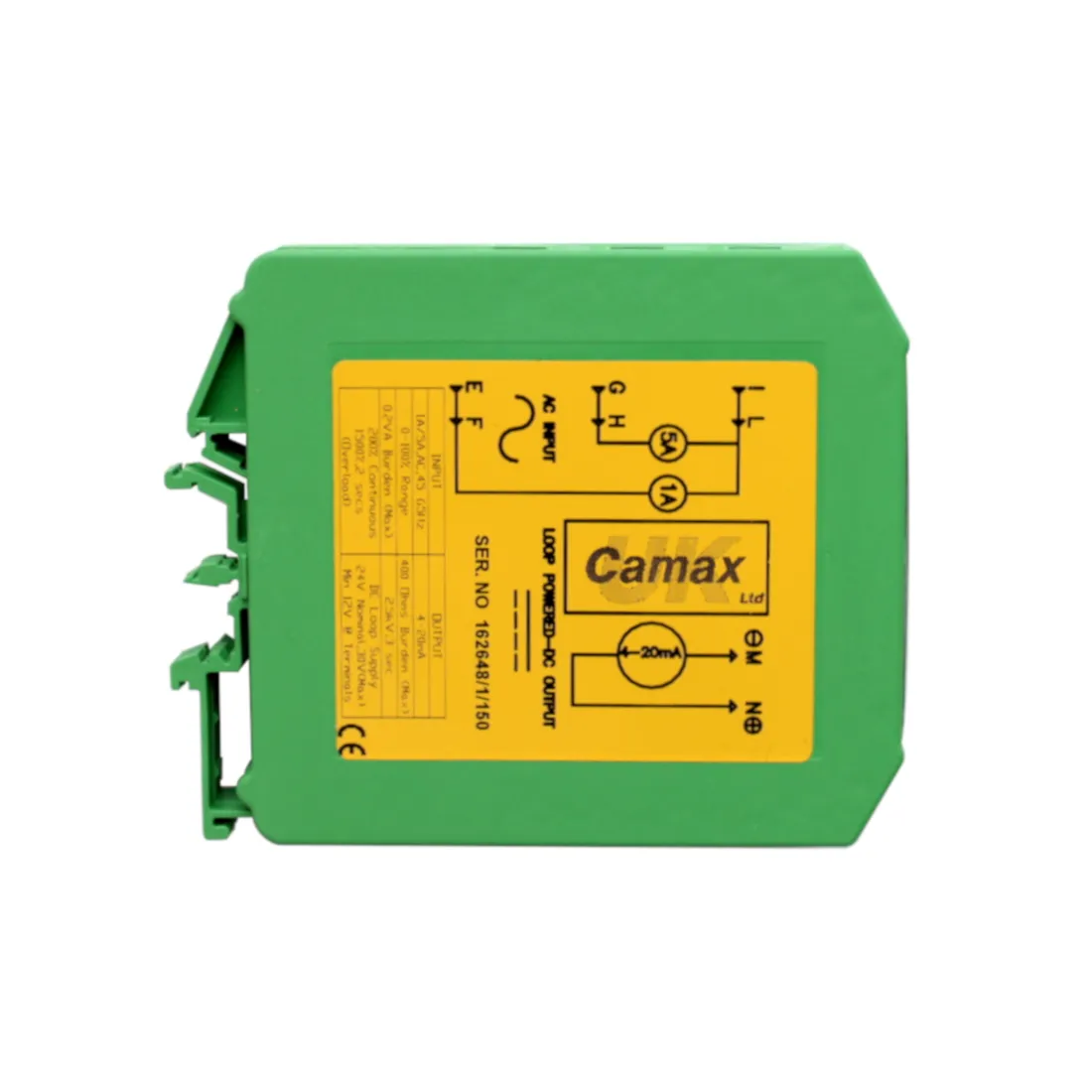

CAM420 Current Transducer (4-20mA Output)

CAM420 Current Transducer (4-20mA Output)

£50.00

£60.00 inc. VAT

Product Description

CAM420 is a 1 or 5A input current transducer for multiple applications including motor control and failure detection.

Specification

Input In

1A & 5A

Sensing

Mean

Frequency Range

45Hz – 65 Hz Standards

Operating Range

0 – 120% nominal FS Amp

Overload

For 10 seconds - x15 In continuous - x2 In

Output

4 – 20 mA max 25mA

Response Time

Less than 1 sec

Accuracy

Better than Class 1 EN 60688

Output Burden

250 W nominal, 600 W max

Aux Supply

Loop 24Vdc (16 – 36V)

Max Cable

4mm²

Isolation

Input to Output - 4kV 50Hz 1 sec test

Operating Temperature Range

-10ºC to + 65ºC

Storage Temperature Range

-40ºC to + 85ºC

Humidity

< 95% non-condensing

Protection Category

IP20

Mounting

TS35 DIN Rail

Dimensions

35 x 38 x 22.5mm
