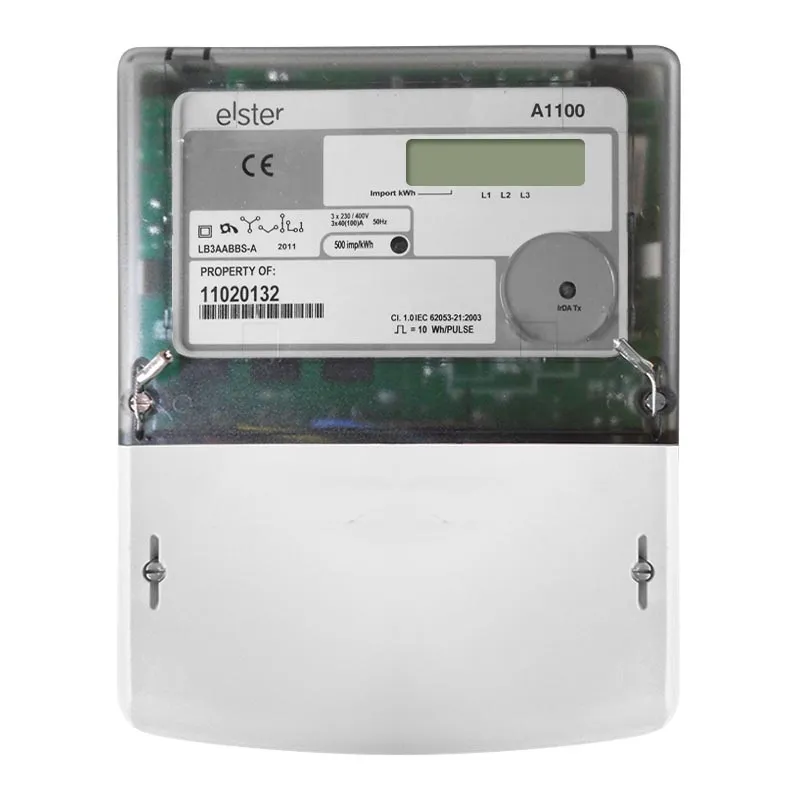

Honeywell (Elster) A1100 MID kWh Polyphase CT Meter (UK504-039)

Name: Honeywell (Elster) A1100 MID kWh Polyphase CT Meter (UK504-039)
Brand: Elster
Price: 81.6 GBP
Availability: BackOrder

Elster

Manufacturer Part No: UK504-039

Honeywell (Elster) A1100 MID kWh Polyphase CT Meter (UK504-039)

Elster

Manufacturer Part No: UK504-039

Sorry, this product is not currently available. Please get in touch for information on alternative products.

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

Elster's A1100 polyphase kWh meter is a cost-effective solution for highly secure metering, operating with a high degree of accuracy over its full range. This meter is suitable for domestic, commercial and light industrial applications. A1100 is available with either CT connection (UK504-039) or direct connection (UK504-060).

Specification

Current Range	20-100A, 10-60A
Reference Voltage	220-240V (L-N) or 220-240V (L-L) 110-120V (L-N) or 110-120V (L-L)
Frequency	50 or 60Hz
Voltage Circuits (230V)	0.9W, 9VA capacitive burden/phase [max]
Current Circuits	2VA @ 100A/phase [max]
Insulation	4kV RMS 50Hz
Impulse Withstand	12kV 1.2/50us 500ohm source
Display LCD	9.8 x 3.5mm characters High contrast, wide-angle 5, 6 or 7 digits
Mechanical Register	6.7 x 3.5mm characters 6 or 7 digits
IrDA Baud Rates	2400, 4800 or 9600 (without serial port)
Serial Baud Rates	2400 or 4800
Product Life	16 years
Certified Product Life	10 years
Temperature	-40°C to +70°C (operational range) -40°C to +85°C (storage)
Humidity	Annual mean 75% (30 days spread over one year, 95%)
Pulse Width	10 to 250ms or equal mark/space
Wh/pulse	1, 2, 4, 5, 10, 20, 25, 40, 50, 100
Dimensions (W x H x D)	171.5 x 233 x 49mm
Weight	860 grams
Specifications	kWh Class 1 or 2 IEC 62053-21 EC Directive 2002/22/EC (MID) kWh Class A or Class B
Case	IP53 to IEC 60529:1989
Terminal Bores	Options of 8.2mm, 9.0mm or 9.5mm
