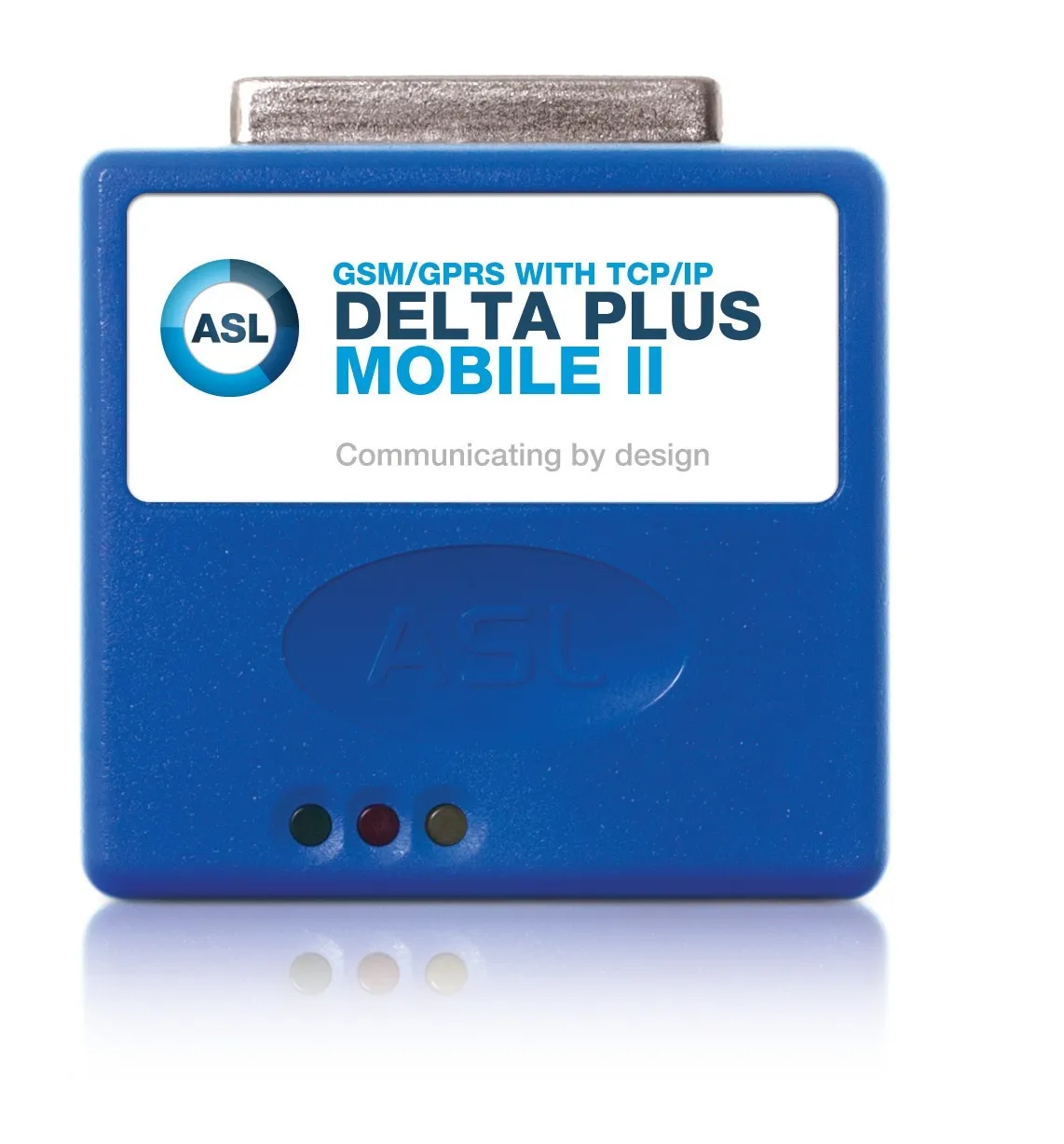

ASL GSM/GPRS Telemetry 306 Modem Delta Plus Mobile II (UK515-000)

Name: ASL GSM/GPRS Telemetry 306 Modem Delta Plus Mobile II (UK515-000)
Brand: ASL
Price: 93.6 GBP
Availability: BackOrder

ASL

ASL GSM/GPRS Telemetry 306 Modem Delta Plus Mobile II (UK515-000)

ASL

£78.00

£93.60 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

The Delta Plus Mobile II allows access to remote data via the public mobile telephone networks. The industry-standard data port allows the unit to be connected to equipment in place of a fixed-line modem. The flexible input power supply requirements enhance the ease of use.

The Modem is ideal for use with electronic electricity meters where it is small enough to fit under the terminal cover. It can also be mounted via its 25 way ‘D’ connector.

Product Features:

Modem compatible communications data rates up to 9600bps
Error correction including V110 (for ISDN/GSM connected Host)
Always on GPRS capability as standard
Industry-standard 25 way D-type socket interface
Advanced Super Caps allow no battery operation (Std Product)
Flexible power supply of 6V to 14VDC
Standby mode with current drain of < 50mW
Typical average operating power of < 500mW
Plugin compatibility with other Delta Plus and many other modems
Local or remote antenna
Dimensionally compact and cost-effective

Specification

Data rates & standards	V22 (1200bps), V22bis (2400bps), V32 (9600bps) . - [ V32bis (14,400bps) battery version only]
GPRS Protocol	Supports TCP/IP stack Class 10 and ASL high efficiency telemetry protocols (ATP)
Network compatibility	Quad band for use on GSM and GPRS (Class B 4+1) networks at 850/900/1800/1900MHz
SIM card	Secure mounting with easy access ‘push - push’ style SIM holder
Error Correction/Data Compression	V42, V42bis standards for modem and V110 for ISDN and GSM hosted applications
Power supply	Powered from the host data port. +6V to +14 V dc Delta Plus Mobile II with Super Caps and no battery: 50mW standby, 500mW communicating - ASLH306. Delta Plus Mobile II with Super Caps and a lithium Ion battery: 30mW standby, 1W communicating - ASLH306BATT
Enclosure	Custom moulded plastic housing, size - 61x57x24mm
Weight	70kg
Environmental conditions	-20 to +55°C operating; –20 to +70°C storage. Humidity 0-95% non-condensing
Control of functions	By ‘AT’ compatible command subset
Auto dial/answer	Under ‘AT’ command control. Auto answer with Call Indicate
Antenna connector	SMA bulkhead connector on 130mm flying lead
Data port	RS232 (V24/28) asynchronous serial port supporting RXD, TXD, DCD, DTR, RTS and CTS
Data port connector	Integral 25 way ‘D’ socket. Standard pinout with power on pin 7 – ve, pin 9 and 15 + ve
Remote configuration	By the use of Hyper Terminal or any suitable terminal emulation package for access
Approvals	The product conforms to : 3GPP TS 51.010-1, EN60950, R&TTE directive 99/5/EC EMC Directive 89/336/EEC & Low Voltage Directive 73/23/EEC
Additional services	For more communications options see the separate data sheets for the other communications modules that are in the Delta Plus family. ASLH is also able to offer modems with customized configurations, tailored to specific customer’s requirements as well as fully custom communications products.
