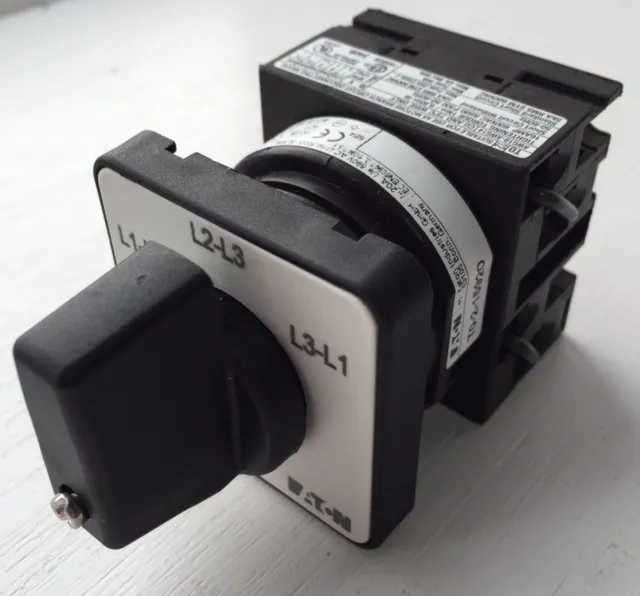

Eaton Volt meter selector switch Flush mounted housing (T0-2-5920/E)

£12.70

£15.24 inc VAT

Overview

Hobut Selector Switches suitable for panel mount metering (Current Transformer connected) between phase currents or line and phase voltages.

The modular system is particularly flexible and enables a broad range of different combinations and types. Cam-Switches are accessible for rated un-interrupted currents from 14A to 65A in three basic designs: cover mounting, base mounting, and surface mounting (insulated enclosure).

Rotary cam switches can be used in a large range of applications and are just as suitable for switching motors as they are for control circuits.

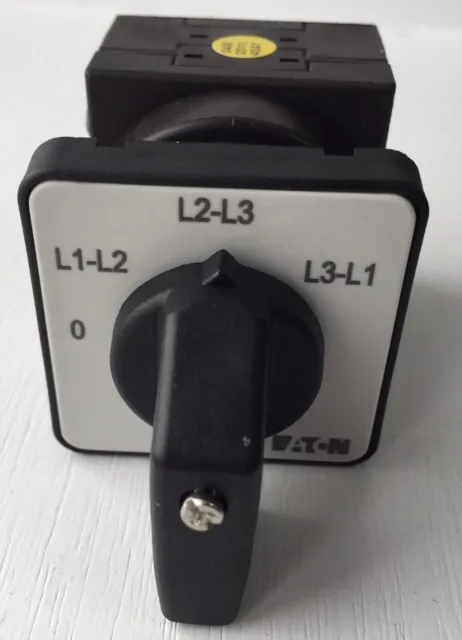

The switch works as an Voltmeter and has 3 configurable options from: Line 1: Line 2, Line 2:Line 3 and Line 3: Line 1

Dimensions: Height 48mm, Width 48mm and Length 85mm

Specification

Current rating

10A (AC22)  (BS EN 60947-3)

Voltage rating

500V AC  (BS EN 60947-3)

IP rating

Front-IP65

Maximum cable size

4mm²

Temperature Ranges

-20ºC to +40ºC

Options



IP rating can be increased to Front-

IP 54, Back- IP 42

Downloads

T0-2-15920-E Technical Datasheet.PDF
