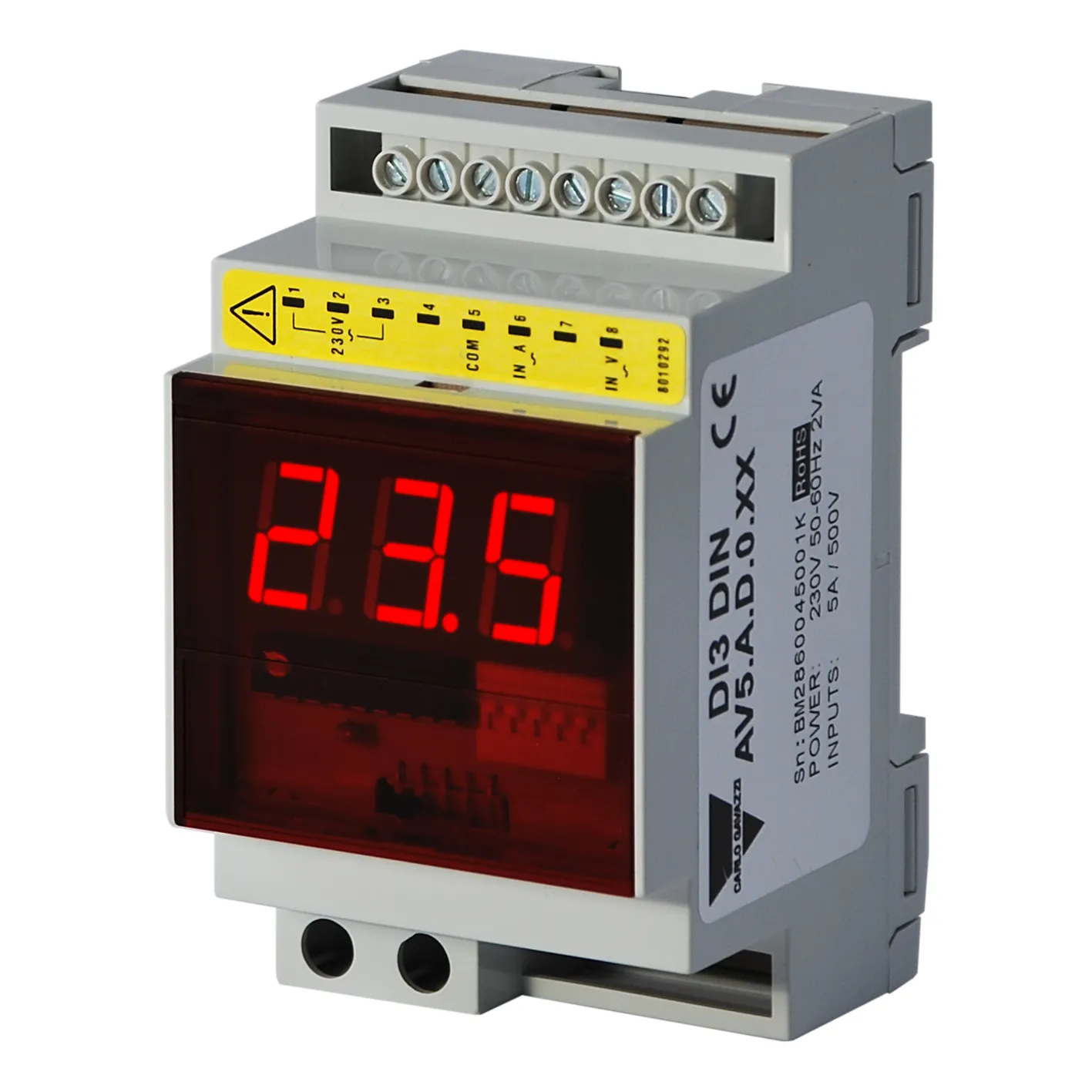

Carlo Gavazzi DI3-DIN AV5 AC Ammeter or Voltmeter

Manufacturer Part No: DI3-DIN

Carlo Gavazzi DI3-DIN AV5 AC Ammeter or Voltmeter

Manufacturer Part No: DI3-DIN

£62.53

£75.04 inc. VAT

Product Description

Carlo Gavazzi's DI3-DIN is a 3-dgt µP-based meter with double input for AC currents or voltages. The meter comes with 20 selectable primary CT/VT ranges (CT/VT).

Specification

Input

Rated input

5A/500 VAC, 45 to 400 Hz
(1A/100 VAC on request)

Overload protection

Continuous
Current: 1.2 x rated input

Voltage: 1.2 x rated input

For 1s

Current: 5 x rated input

Voltage: 2 x rated input

Accuracy

± 0.5% f.s., ± 1 dgt

Temperature drift

± 350 ppm/ºC

Display

7-segment LED, h 14.2 mm,
3 digits

Sampling rate

1 time/s

Indiation

Max: 999

Min: 000

500 VAC range: Scalesuppressionupto 5% f.s

Other ranges: Scalesuppressionupto 3% f.s

Over range: EEE

Input range selection

DIP-switch selectable

Decimal point position

DIP-switch selectable

General

Operating temperature

0° to 50°C (32° to 122°F)
(R.H. < 90% non-condensing)

Storage temperature

-10° to 60°C (14° to 140°F)
(R.H. < 90% non-condensing)

Insulation reference voltage

300 Vrms to ground

Dielectric strength

4000 Vrms for 1 minute

Noise rejection

100 dB, 40 to 60 Hz.

EMC

IEC 60801-2, IEC 60801-3,
IEC 60801-4 (level 2),
EN 50 081-1, EN 50 082-1.

Safety standards

EN 61 010-1, IEC 61010-1,VDE 0411

Connector

Screw-type

Housing

Dimensions: 89 x 53.5 x 58.5 mm (3-DIN modules)

Material: ABS, self-extinguishing: UL 94 V-0

Degree of protection

Front: IP 50 (IP 65 on request)

Weight

Approx 250 g

Approvals

CSA, CE

Supply

AC supply

230 VAC, -15% +10%, 50/60 Hz (standard) 24 VAC, 48 VAC, 115 VAC, -15% +10%, 50/60 Hz (on request)

Power consumption

3.2 VA
