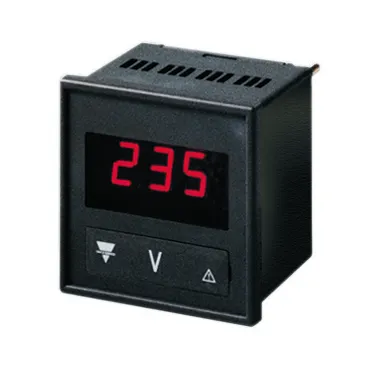

Carlo Gavazzi DI3-72 AV1/AV5 AC Ammeter or Voltmeter

£70.00

£84.00 inc VAT

Overview

3-dgt µP-based meter with double input for AC currents or voltages. With 20 selectable primary CT/VT ranges (CT/VT) Ranges avaliable to view in PDF in 'Downloads' section)

The housing is for panel mounting and ensures a degree of protection (front) of IP 50 (IP 65 on request).

Output- 5A

Dimensions- 3DIN Module

Key features

• 3-dgt µP-based indicator for AC currents or voltages
• Selectable CT/VT primary range
• Panel mounting • 72 x 72 mm
• Degree of protection (front): IP 50 (IP 65 on request)

Specification

Supply specification
AC supply 230 VAC, -15% +10%, 50/60 Hz (standard)
24 VAC, 48 VAC, 115 VAC, -15% +10%, 50/60 Hz (on request)
Power consumption 3.2 VA

Input Specifications
Rated input 5A/500 VAC, 45 to 400 Hz (1A/100A if requested)

Overload protection
Cont. Current: 1.2 x rated input
Voltage: 1.2 x rated input
For 1 s- Current: 5 x rated input
Voltage: 2 x rated input

Accuracy
(@ 25°C ± 5°C, R.H. ≤ 60%)               ± 0.5% f.s., ± 1 dgt

Temperature drift ± 350 ppm/ºC

Display-
7-segment LED, h 14.2 mm, 3 digits

Sampling rate
1 time/s

Indication
Max - 999
Min - 000
500 VAC range- Scalesuppressionupto5%f.s.
Other ranges- Scalesuppressionupto 3%f.s.
Over range EEE
Input range selection DIP-switch selectable
Decimal point position DIP-switch selectable
Housing
Dimensions 72x72x75mm (72x72 Panel Mount)
EMC
IEC 60801-2
IEC 60801-3
IEC 60801-4 (level 2)
EN 50 081-1
EN 50 082-1

Downloads

DI3-72AV5-1 data sheet.pdf
