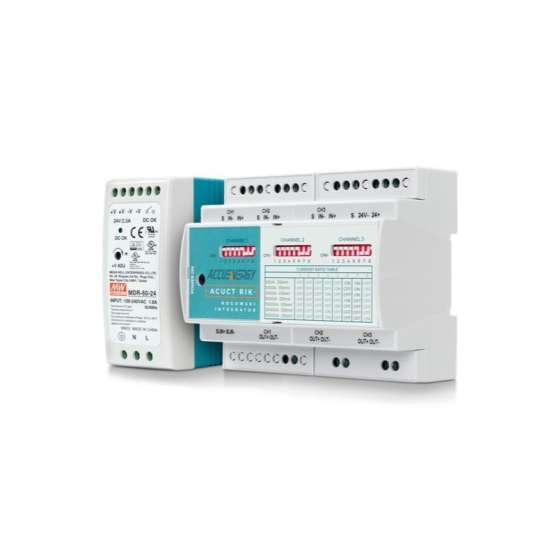

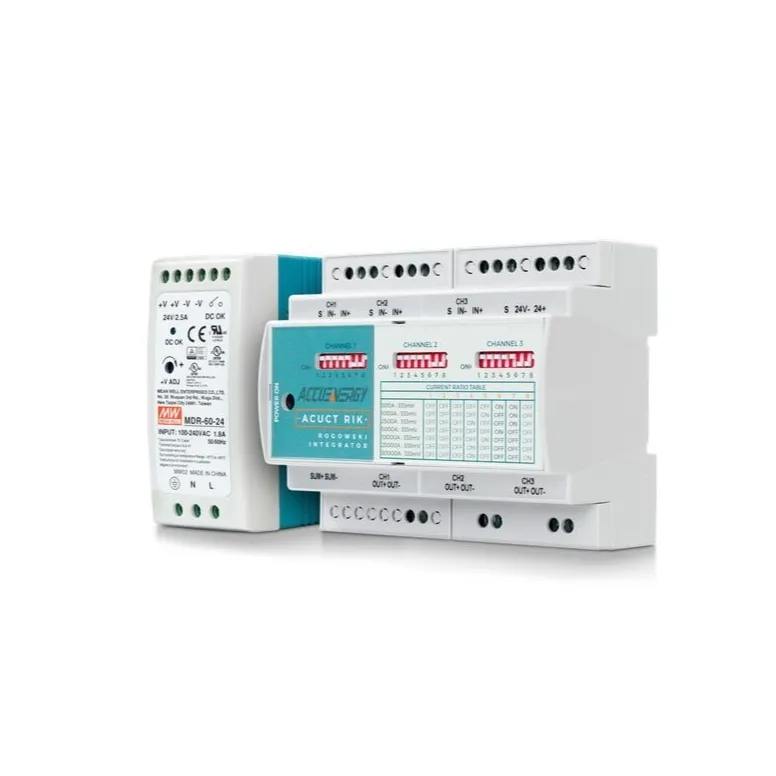

Accuenergy RIK-mV-3 (Integrator + Power supply only)

Name: Accuenergy RIK-mV-3 (Integrator + Power supply only)
Brand: Accuenergy
Price: 222 GBP
Availability: InStock

Accuenergy

Accuenergy RIK-mV-3 (Integrator + Power supply only)

Accuenergy

£185.00

£222.00 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

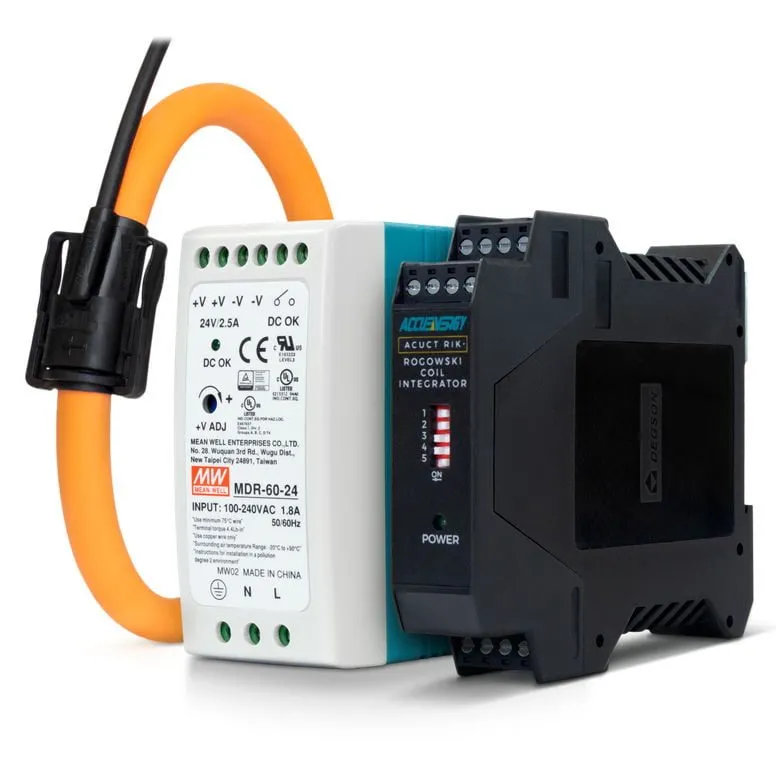

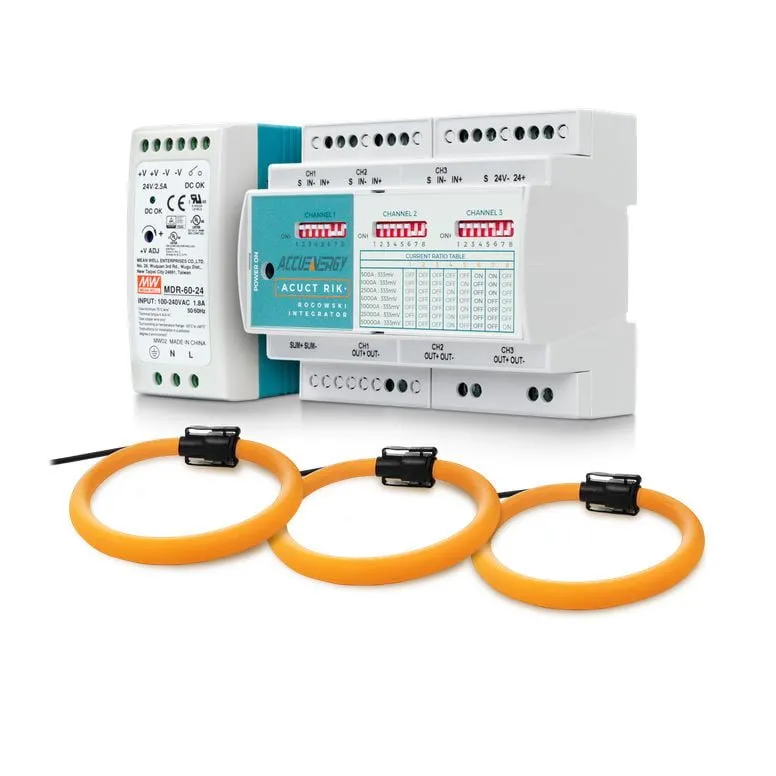

The Accuenergy Rogowski Integrator allows the convenience of a Rogowski coil to be used with any power meter or device with a 333mV nominal input. The RIK mV integrator facilitates the installation process of Rogowski coil CTs for a variety of applications where the spatial constraint may limit more rigid-style current transformer formats. The RIK mV integrator facilitates the installation process of Rogowski coil CTs for a variety of applications where the spatial constraint may limit more rigid-style current transformer formats.

Product Features:

0-333mV rated output works with any power meter or device with 333mV nominal current transformer input.
Flexible, rope-like current sensor, designed to easily fit into crowded electrical panels or around busbars^*
Current sensing range from 2.5A to 50,000A for compatibility across any system.
Field-configurable CT ratios: 500A, 1kA, 2.5kA, 5kA, 10kA, 25kA, 50kA
Individual CT ratios can be configured for each channel. Works in any single phase application with different current ratings.
Compatible with both 50Hz and 60Hz systems

Specification

Measurement Channels	3
Window Diameter Size (mm)	4.17" (106mm), 7.01" (178mm), 10.67" (271mm), 14.53" (369mm)
Length (mm)	15.75" (400mm), 23.62" (600mm), 35.43" (900mm), 47.24" (1200mm)
Current Measurement Range	2.5A - 60000A
Output Current	0-333mVac
Sensing Range	500A, 1000A, 2500A, 5000A, 10000A, 25000A and 50000A (user selectable)
Maximum Burden	1.8VA/channel
Maximum Output Impedance	50mΩ
Frequency	45Hz to 65Hz
Accuracy	±1% Full Scale Error
Channel Cross Talk	< -60dB
Maximum Operating Temperature	55°C (131°F)
