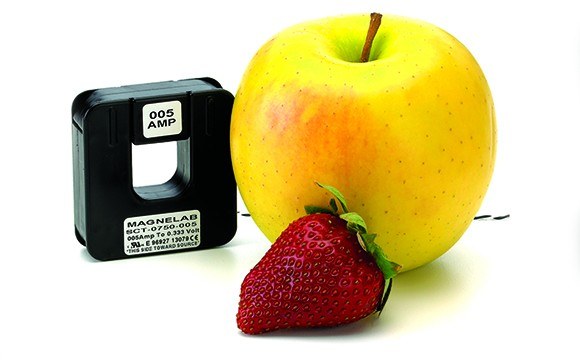

Magnelab Split-Core AC Current Sensor SCT-0750 (0.333V Output)

Magnelab Split-Core AC Current Sensor SCT-0750 (0.333V Output)

£28.00

£33.60 inc. VAT

Product Description

Magnelab’s SCT-0750 Series offers split-core current sensors that can transform up to 200 Amps of AC input current into a 0.333-volt output. It has a self-locking mechanism and can snap around a preinstalled conductor, making it a popular choice for installation on existing electrical wiring. Other commonly used purposes include recording, data logging, energy management, power monitoring and cost allocation.

Specification

Rated Current 0.333V
Frequency Operates from 50 Hz to 400 Hz
Accuracy 10% to 130% of rated current
Linearity Accuracy ± 1%
Phase Angle < 2 degrees measured at 50% rated current
Standards UL recognized, CE, and RoHS
Lead 8 ft. twisted-pair lead
