Socomec COUNTIS E30 3 Phase Energy Meter 100A Direct Connection with Pulse Output (4850-3005)
£178.83
£214.60 inc. VAT
£217.36
£260.83 inc. VAT

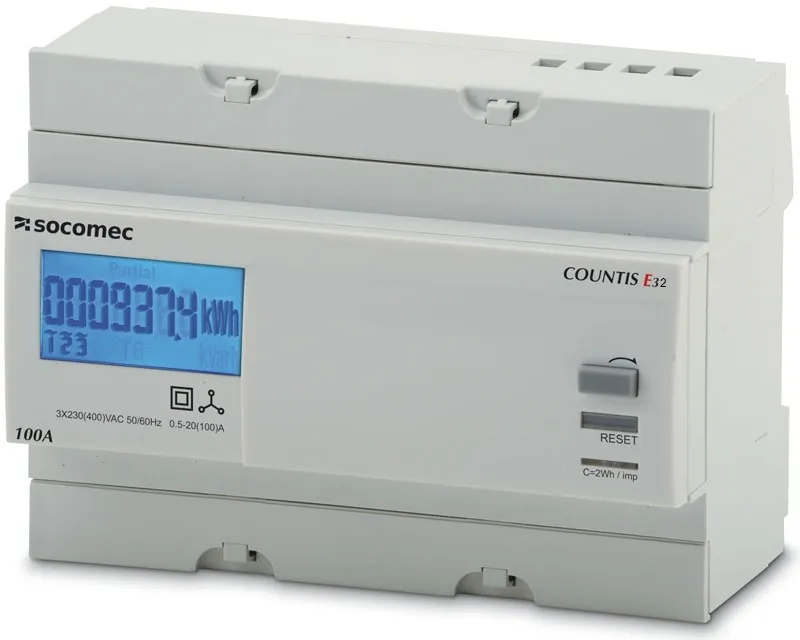

Socomec's COUNTIS E32 is a modular active electrical energy meter displaying the energy and power consumed (kWh and kW) directly on its backlit LCD display. It is designed for three-phase load metering and is used for direct connections of up to 100 A.
Type | modular |
Number of modules | 7 |
Dimensions (W x H x D) | 126 x 90 x 62.5 mm |
Case degree of protection | IP20 |
Front degree of protection | IP51 |
Display type | backlit LCD display |
Rigid cable cross-section | 2.5 to 35mm² |
Flexible cable cross-section | 2.5 to 35mm² |
Weight | 490g |
Type | three-phase direct 100 A |
Input consumption | 0.5 VA per phase |
Startup current (Ist) | 80 mA |
Minimum current (Imin) | 0.5 A |
Transition current (Itr) | 2 A |
Reference current (Iref) | 20 A |
Permanent overload (Imax) | 100A |
Intermittent overload | 3000 Imax over 10 ms |
Range of measurement | 230 ... 400V +/- 20 % |
Consumption (VA) | 2 |
Permanent overload | 280 V phase-neutral / 480 V phase-phase |
Active (according to IEC 62053-21) | Class 1 |
Active (according to EN 50470) | Class B |
Self-supplied | Yes |
Frequency | 50 / 60 Hz |
Number | 1 |
Type of Octocoupler | IEC 62053-31 class A (20 ... 30 VDC) |
Fixed pulse weight | 100 Wh |
Pulse duration | 100 ms |
Operating temperature | -10 to 55 °C |
Storage temperature | -20 to 75 °C |
Relative temperature | 85% |
Communication | E33/E34 | E35/E36 |
Link | RS485 | Connection |
Type | 2 half duplex wires | 2 half duplex wires |
Protocol | MODBUS RTU | M-BUS |
Baudrate | 4800 … 38 400 bauds | 300 … 9600 bauds |
