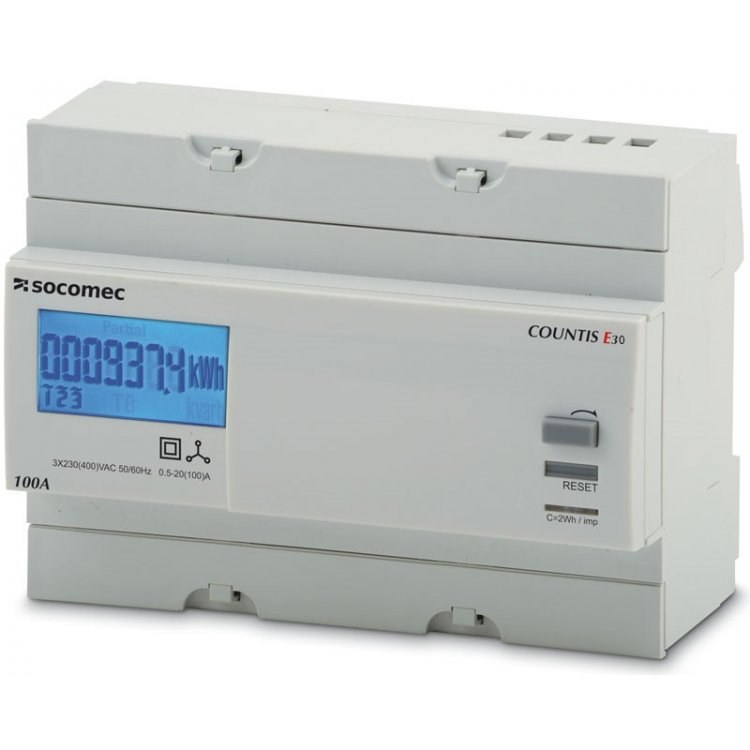

Socomec COUNTIS E30 3 Phase Energy Meter 100A Direct Connection with Pulse Output (4850-3005)

Name: Socomec COUNTIS E30 3 Phase Energy Meter 100A Direct Connection with Pulse Output (4850-3005)
Brand: Socomec
Price: 214.596 GBP
Availability: BackOrder

Socomec

Manufacturer Part No: 48503005

Socomec COUNTIS E30 3 Phase Energy Meter 100A Direct Connection with Pulse Output (4850-3005)

Socomec

Manufacturer Part No: 48503005

£178.83

£214.60 inc. VAT

Description
Specification
Downloads
Ask a Question
Help & Advice

Product Description

Socomec's COUNTIS E30 is a modular active electrical energy meter displaying the energy and power consumed (kWh and kW) directly on its backlit LCD display. It is designed for three-phase load metering and is used for direct connections of up to 100 A.

Product Features:

Pulsed output
Accuracy: 1%

Specification

Case

Type	modular
Number of modules	7
Dimensions (W x H x D)	126 x 90 x 62.5 mm
Case degree of protection	IP20
Front degree of protection	IP51
Display type	backlit LCD display
Rigid cable cross-section	2.5 to 35mm²
Flexible cable cross-section	2.5 to 35mm²
Weight	490g

Current Measurement

Type	three-phase direct 100 A
Input consumption	0.5 VA per phase
Startup current (Ist)	80 mA
Minimum current (Imin)	0.5 A
Transition current (Itr)	2 A
Reference current (Iref)	20 A
Permanent overload (Imax)	100A
Intermittent overload	3000 Imax over 10 ms

Voltage Measurement

Range of measurement	230 ... 400V +/- 20 %
Consumption (VA)	2
Permanent overload	280 V phase-neutral / 480 V phase-phase

Energy Accuracy

Active (according to IEC 62053-21)	Class 1
Active (according to EN 50470)	Class B

Power Supply

Self-supplied	Yes
Frequency	50 / 60 Hz

Output (pulsed) (COUNTIS E30/E31/E32)

Number	1
Type of Octocoupler	IEC 62053-31 class A (20 ... 30 VDC)
Fixed pulse weight	100 Wh
Pulse duration	100 ms

Operating temperature

Operating temperature	-10 to 55 °C
Storage temperature	-20 to 75 °C
Relative temperature	85%

Communication

Communication	E33/E34	E35/E36
Link	RS485	Connection
Type	2 half duplex wires	2 half duplex wires
Protocol	MODBUS RTU	M-BUS
Baudrate	4800 … 38 400 bauds	300 … 9600 bauds
