Find out moreSchneider EBX210 DIN-Rail Mounted Energy Server (ComX 210)
EBX210 2

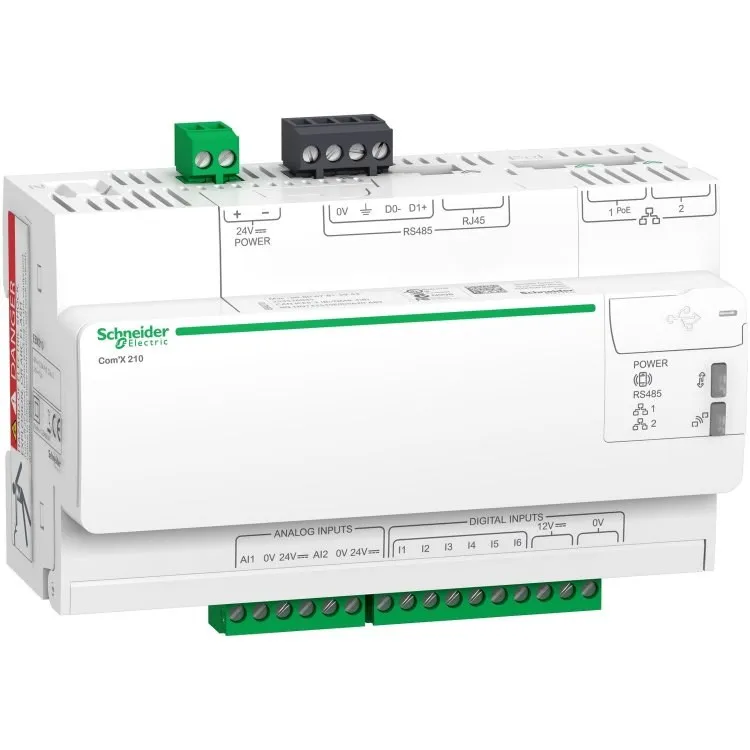

Schneider EBX210 DIN-Rail Mounted Energy Server (ComX 210)
£840.89
£1,009.07 inc. VAT
Specification
[Us] rated supply voltage | Main or redundant power supply: 24 V - DC Main supply: 100...230 V - AC at 50/60 Hz |
Power consumption in W | <= 26 W 100...230 V <= 26 W 24 V <= 15 W via PoE |
Communication network type | 1 RJ45: RS485, Modbus serial Terminal block: RS485, Modbus serial 1 RJ45: Ethernet, PoE 15W (Power over Ethernet) 1 RJ45: Ethernet, DHCP |
Number of inputs | 6 digital 2 analog |
Discrete input current | 60 mA at 12 V DC |
Sensor power supply | 24 V DC, 50 mA |
Analogue input type | 4...20 mA Pt 1000 Pt 100 0...10 V |
Number of outputs | 0 |
Communication gateway | Ethernet TCP/IP to Modbus |
Memory capacity | 128 MB RAM 256 MB flash |
Mounting mode | Clip-on |
Mounting support | 35 mm DIN rail |
Product certifications | C-Tick CE |
Standards | EN 61010-1 EN 60950 |
Dimensions (W x H x D) | 144 x 109 x 69 mm |
Product weight | 450 g |
Local signalling | LED: for power supply LED: for status (GPRS) LED: for communication (Modbus) LED: for communication (Ethernet) LED: for communication (WiFi) LED: for I/O |
Compatibility code | ComX 210 |
Relative humidity | 5...95 % at 55 °C without condensation |
IP degree of protection | Front face: IP40, Terminal block: IP20 |
Ambient air temperature for operation | -25...60 °C |
Ambient air temperature for storage | -40...85 °C |
Pollution degree | 3 |
Operating altitude | 2000m |
