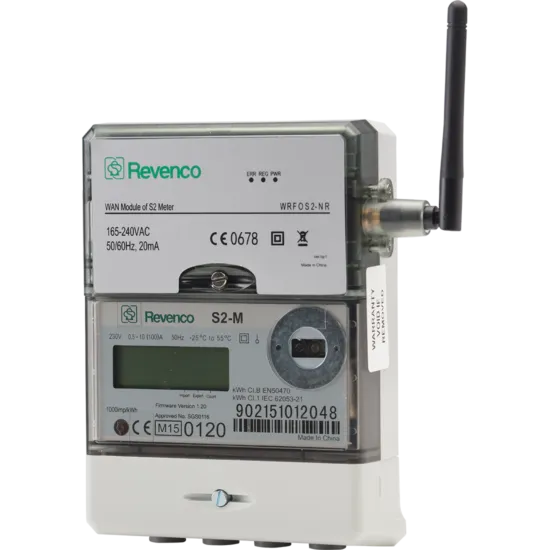

Orsis S2-M SmartGen Electronic Single Phase MID kWh Meter

Orsis S2-M SmartGen Electronic Single Phase MID kWh Meter

£125.00

£150.00 inc. VAT

Product Description

The S2-M is a compact and secure domestic style, single-phase electric meter that delivers a cost-effective solution for one or two rate domestic and PV applications that enables the monitoring of both generation and export kWh. Energy data is transmitted to the Orsis back office system for data validation. The energy data is forwarded to energy suppliers, Data Collectors/ Aggregators, PV marketplace and the Orsis Sunrise PV Portal.

All data retrieved can be used by the consumer to understand their energy consumption/generation levels and manage their fiscal and environmental cost from the information provided.

Product Features:
  • MID approved
  • 100A Direct Connection
  • kWh Import or kWh Import/Export
  • 12 kV impulse withstand

Specification

Current Range

0.5 - 10(100)A

Voltage Range

175—275V

Frequency

50Hz

System Connection

1 Phase, 2 Wire

Start Current

0.004lb

Reference Voltage

230V

Accuracy

Class B MID & IEC

irDA Baud Rates

300 — 9600

Current circuit power consumption

≤ 1.5W

Voltage circuit power consumption

≤ 1.5W

Certification

MID Approved 2004/22/EC

Temperature

-25°C—55°C (Operational Range), -25°C—85°C (Storage)

Humidity

Annual mean 75% (for 30 days spread over one year, 95%)
Minimum value 5%, Maximum value 95%

Weight

650 grams (combined weight of meter and module)

Display Area

50 x 17mm

Case

IP53 to IEC62059:1989

Dimensions (W x H x D)

120 x 170 x 45mm (155mm W incl antenna)

RoHS

Complied

REACH

Complied
