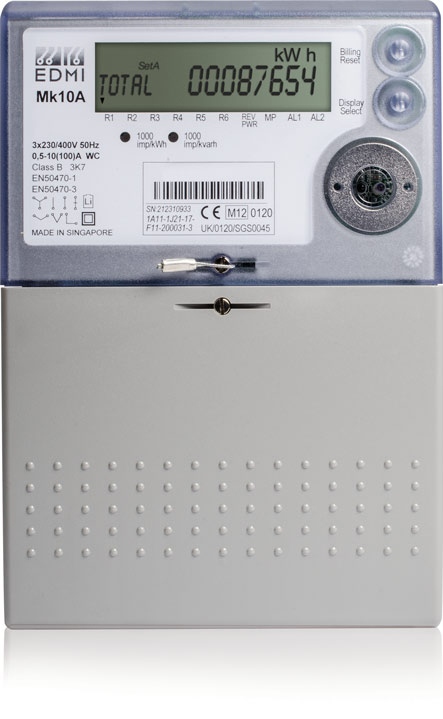

EDMI Mk10A 3 Phase 5A Current Transformer Connected MID kWh Tariff Meter

EDMI Mk10A 3 Phase 5A Current Transformer Connected MID kWh Tariff Meter

£345.00

£414.00 inc. VAT

Product Description

EDMI's Mk10A is a MID Approved, Code 5 compliant, 3-phase kWh Multi-rate tariff meter with CT connection. It has advanced communications capabilities for use in Power Quality indication, advanced commissioning functionality and large memory storage. Energy usage can be continually measured and stored, transmitting data to the Supply Company when needed for billing.

Product Features:
  • MID Certified
  • Import/Export
  • Dimensions (H x W x D): 292.5mm x 175mm x 94mm

Specification

Measurement

General

• Class 1 and Class 2
• Single Phase (3 Circuits)
• Three Phase, Four Wire

Compliance

IEC62052-11, IEC62053-21, IEC62053-23

Voltage & Power Supply

Nominal Voltage

220V – 240V

Operating Range

140V – 290V

Burden

< 10VA / phase @ Vn (3 Phase) (IEC52053-61 Compliant)

Frequency Range

45 Hz – 65 Hz

Current

CT Range

1 / 6 A, 5 / 20 A

WC Range

5/100A (Class 2 only), 10/100A, 25/100A, 20/100A

Short time over current

20 times Imax for 0.5 seconds

Burden

< 0.5 VA / phase

Environmental

Operating Range

-40°C to +70°C

Storage Range

-40°C to +80°C

Relative Humidity

Up to 95% non-condensing

Ingress Protection

IP54 (Outdoor), UL50 (3R)

Measured Values

Energy Values

• 3 element, 4 quadrant
• Import/Export Wh, varh and VAh
• Absolute Wh, varh and VAh
• Phase A,B,C or Total

Other Measured and Displayed Values

• Power: W, var, VA
• True RMS Voltage (3 phase)
• True RMS Current (3 phase)
• Power factor
• Frequency
• Phasor angles
