Schneider NSYS3D3320P Spacial S3D Steel IP66 Enclosure 300 mm x 300 mm x 200mm
NSYS3 D3320 P

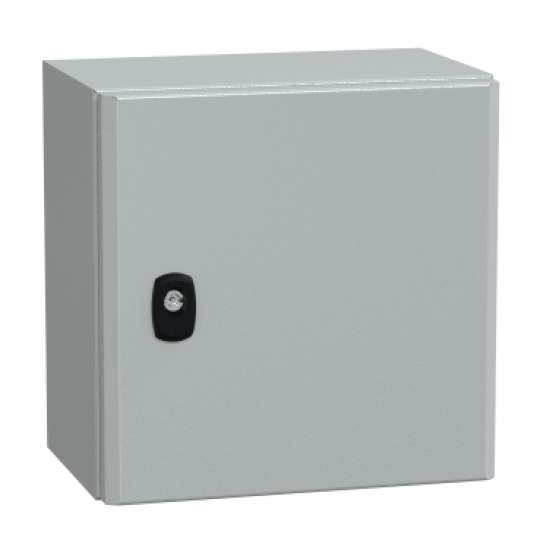

Schneider NSYS3D3320P Spacial S3D Steel IP66 Enclosure 300 mm x 300 mm x 200mm
£69.96
£83.95 inc. VAT
Order now and the product will be dispatched once in stock. Delivery date to be advised - please contact our sales team for further information
Product Description
Features:
- One-piece folded and welded body, double plate thickness gutter shaped front profile. Flat rear panel.
- Degree of protection: IP 66 for all single door enclosures, IP 55 for double door enclosures.
- A light and resistant enclosure with folded cross structure sheet steel.
- External mechanical impact resistance: IK 10 for enclosures with plain door, IK 08 for enclosures with glazed door.
- Time saving : 54 dimensions with or without plain chassis, customized offer, wide range of accessories...
- Wide range of sizes : from 300X200X150 to 1400X1000X300.
- Choice : plain door or glazed door.
- Paint finish : colour grey RAL 7035.
- Certifications : EN 62208 (LCIE), UL, CUL, BV, DNV, LR, GL, ATEX (modified enclosure).
Specification
| Measurements (W x H x D) | 300 x 300 x 200mm |
|---|---|
| Installation accessory type | Wall-mounting |
| Material | Enclosure: steel Mounting plate: galvanised steel |
| Standards | IEC 62208 |
| Product weight | 5.47 kg |
| Door opening side | Reversible (120 °) |
| Product certifications | DNV cUL GL BV LR UL |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
