Siretta Mike 1A GSM/GPRS & 4G 1/4 Wave Whip Antenna/aerial 2.5M SMA or FME

£12.50

£15.00 inc VAT

Overview

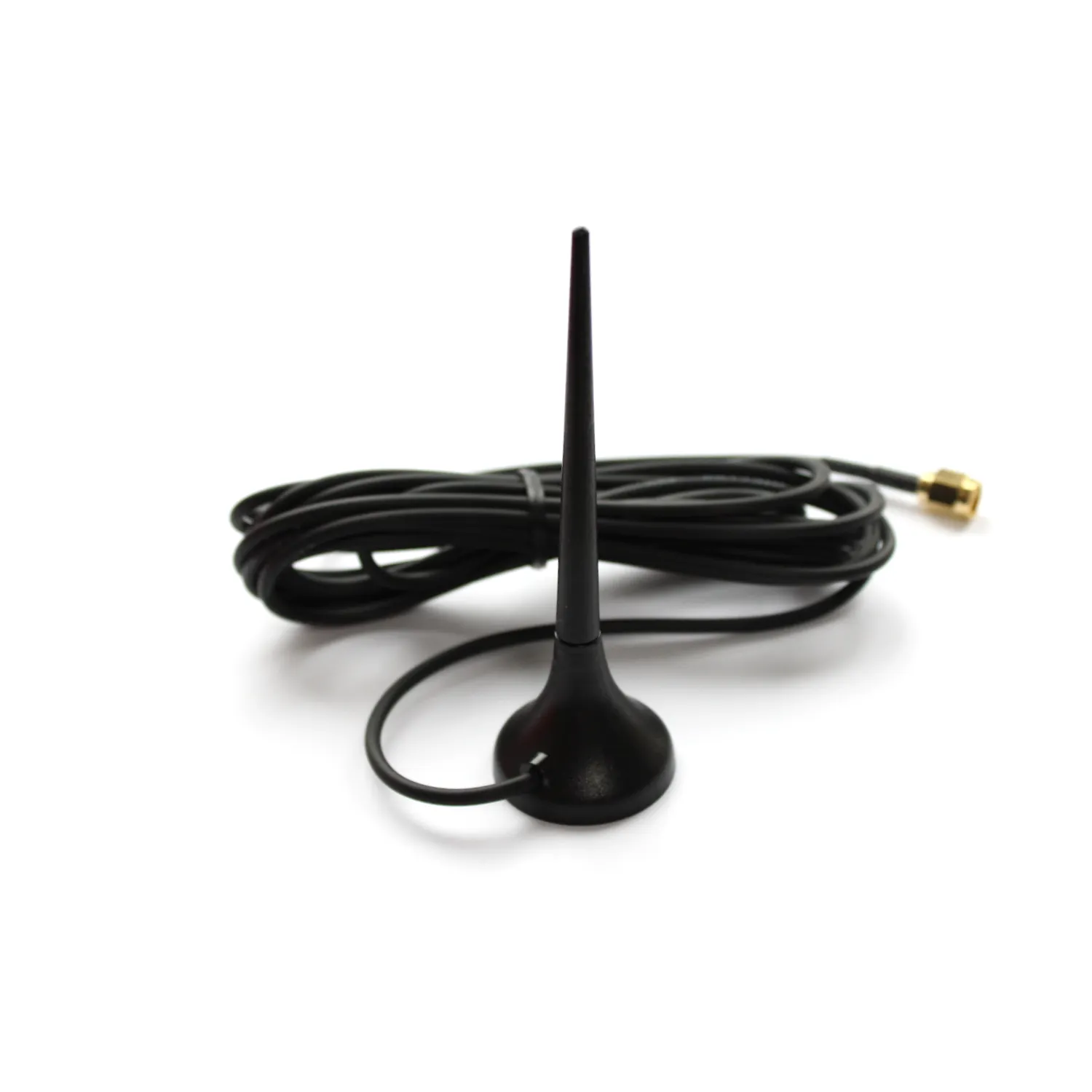

The Mike 1A is a ¼ wave mag mount whip antenna, tuned to quad band GSM/GPRS and 4G frequencies. Its strong magnetic base provides a flexible method of mounting, allowing the user to constantly manoeuvre the antenna to best optimise signal strength.

Mag mount antennas are ideal for fast and simple installations that can be adjusted whenever necessary for the user.

Camax supply this product to allow communication through GSM modems (ASL modems available for purchase).

Specification

Antenna Specifications
Operating Temperature: -40 to +85C
Impedance: 50 ohm
Gain: 3dBi
VSWR: <1.5:1
Polarization: Vertical
Radiating Element: 1/4 wave whip

Operating Frequencies
850, 900, 1800, 1900MHz (Quad Band GSM/GPRS)
2.1GHz (4G)

Dimensions
Height: 105 mm
Width: 34 mm

Mounting Specifications
Cable: RG174
Mounting Method: Magnetic

Downloads

Mike 1A Datasheet Rev 1.4.pdf
