Find out moreEKBT Bell Transformer 230V AC 50/60Hz 24VAC
EKBT Transformer

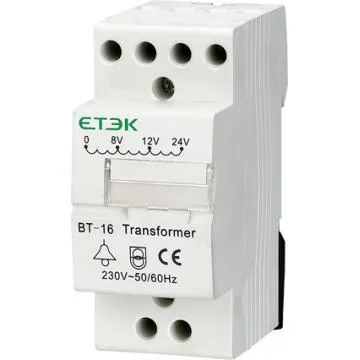

EKBT Bell Transformer 230V AC 50/60Hz 24VAC
£9.50
£11.40 inc. VAT
Product Description
CHANA Bell Transformer (EKBT) is a cost-effective AC Power supply used to power an electric bell of extra low voltage (up to 24V).
Specification
Code |
EKBT |
|
Standard |
IEC61095,CE,ROHS |
|
Technical Data |
Rated input voltage | 230VAC |
| Rated output voltage | 8,12,16,24V |
|
| Rated frequency | 50/60Hz |
|
| Rated power output | 8VA |
|
| Consumption | 0.9W |
|
| Service period | Continuous operating |
|
| Pollution class | 2 |
|
| Connection terminals | pillar terminal with clamp |
|
| Connection capacity | rigid conductor 10mm² |
|
Installation |
Terminal Connection Height | H=15.5mm |
On symmetrical DIN rail |
||
Panel mounting |
||
