Eastron SDM630 Modbus MCT 1/5A Three Phase Multifunction Energy Meter
£95.00
£114.00 inc. VAT
£95.00
£114.00 inc. VAT

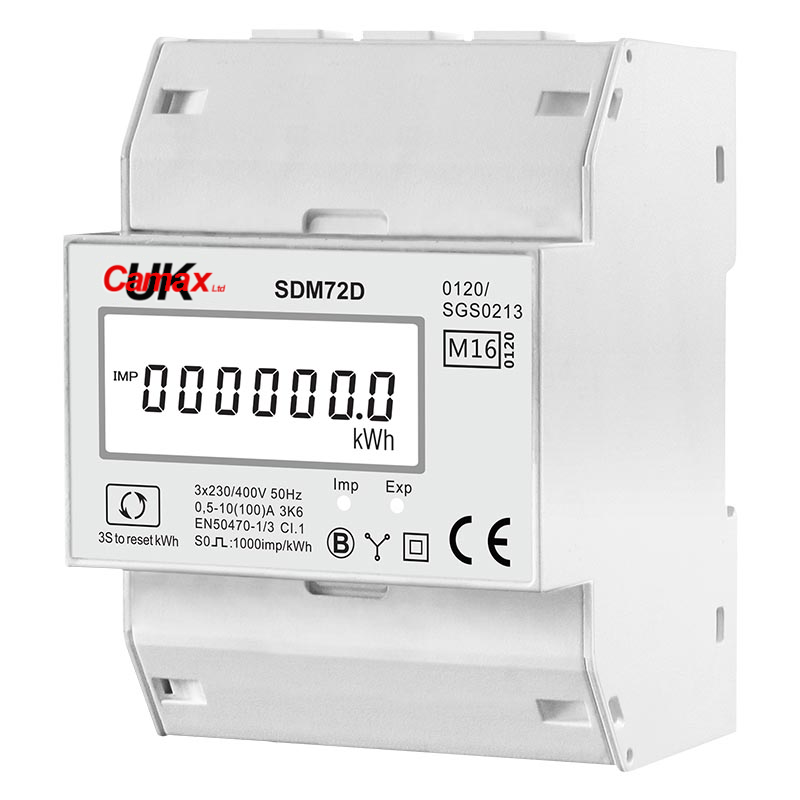

Eastron's SDM72-M is an affordable three phase direct connected (100A) energy meter. This meter has a fixed pulsed output or Modbus RS485 communications for energy monitoring. It is housed in a 4 Module DIN rail case, taking up a minimal amount of space.
The meter has been MID B+D Certified by SGS UK, allowing this model to be used for any sub-billing applications.
Nominal Voltage (Un) | 3x230/400 V ac |
Operational Voltage | 80%~120% of Un |
AC Voltage Withstand | 4KV for 1 minute |
Impulse Voltage Withstand | 6KV-1.2μS |
Basic Current (Ib) | 10A |
Maximum Rated Current (Imax) | 100A |
Operational Current Range | 0.4% lb-Imax |
Over Current Withstand | 30 Imax for 0.01s |
Operational Frequency Range | 50 or 60Hz |
Power Consumption Per Phase | ≤2W/10A |
Pulse Output | 1000imp/kWh |
Display | LCD |
Max Reading | 999999.9 kWh |
Operational Humidity | ≤90% |
Storage Humidity | ≤95% |
Operating Temperature | -25°C - +55°C |
Storage Temperature | -40°C - +70°C |
Reference Temperature | 23°C± 2°C |
International Standard | IEC 62053-21/EN 50470-1/3 |
Accuracy Class | Class 1/Class B |
Installation Category | CAT III |
Mechanical Environment | M1 |
Electromagnetic Environment | E2 |
Degree of Pollution | 2 |
Protection | IP51 (indoor) |
Protective Class | II |
Attitude | up to 2000m |
Electromagnetic Discharges | 8kV contact / 15kV air gap |
Electromagnetic HS Fields | IEC 61000-4-3 |
Electrical Transients | 4kV |
Surge | 4kV |
Radiated & Conducted Emissions | EN 55022 |
Bus Type | RS485 (semi duplex) |
Protocol | Modbus RTU |
Baud Rate | 1200/2400/4800/9600bps |
Address Range | 1-247 |
Max. Bus Loading | 64pcs |
Communication Distance | 1000M |
Parity | EVEN/ODD/NONE |
Data Bit | 8 |
Stop Bit | 1 |
