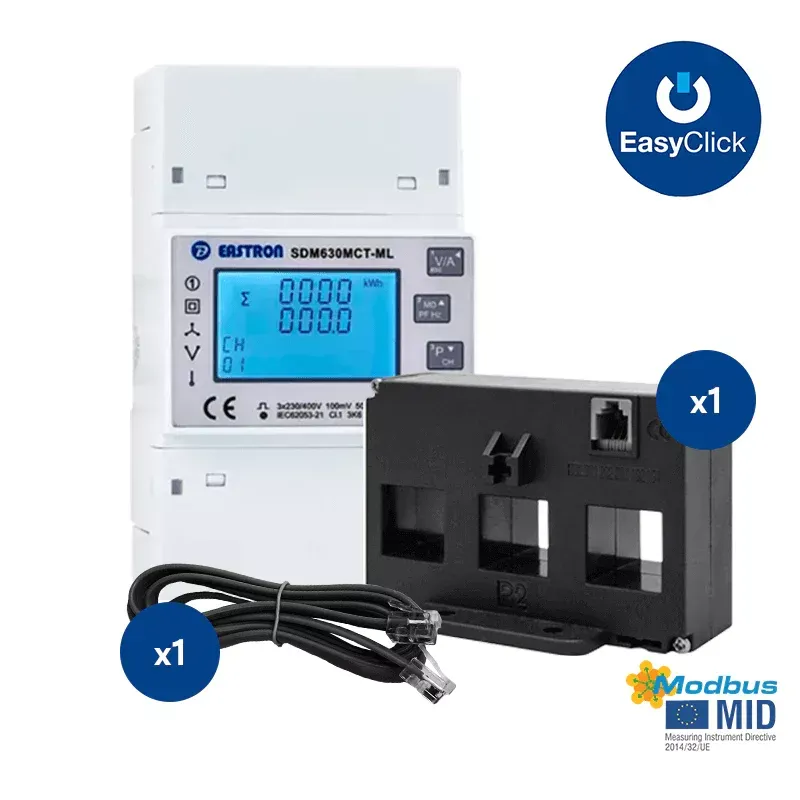

The SDM630MCT-1L measures either 3 x single phase circuits or 1 x three phase circuit via 100mA Easyclick current transformers (RJ12 connection).

*********** Current Transformers & RJ12 cables not included **********

SDM630MCT-L versions available:

• SDM630MCT-1L (1 x Three Phase, or 3 x single phases)
• SDM630MCT-2L (2 x Three Phases, or 6 x single phases)
• SDM630MCT-3L (3 x Three Phases, or 9 x single phases)
• SDM630MCT-4L (4 x Three Phases, or 12 x single phases

RJ12 Cabling available

• 1 Metre
• 2 Metre
• 3 Metre
• 4 Metre
• 5 Metre

Displayed Parameters

• Phase to Neutral Voltage (V)
• Phase Current (A)
• Voltage Total Harmonic Distortion (U%THD)
• Current Total Harmonic Distortion (I%THD)
• Frequency (Hz)
• Power Factor (PF)
• Current Max Demand (MD A)
• Power Max Demand (MD kW)
• Active Power (kW)
• Reactive Power (kVAr)
• Apparent Power (kVA)
• Import Active Energy (kWh)
• Export Active Energy (kWh)
• Total Active Energy (kWh)
• Import Reactive Energy (kVArh)
• Export Reactive Energy (kVArh)
• Total Reactive Energy (kVArh)
