Eastron SDM120CT-Modbus-MID Single Phase 5A Energy Meter
In stock
£40.00
£48.00 inc. VAT

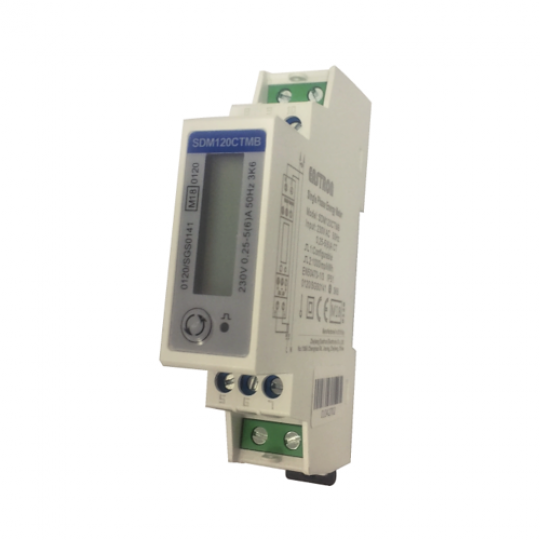

Eastron SDM120CT-M-Bus-MID 5A Energy Meter
SDM120 CT
Eastron SDM120CT-M-Bus-MID 5A Energy Meter
£40.00
£48.00 inc. VAT
Product Description
Eastron's SDM120 is a digitally powered single-phase meter that can measure a wide range of parameters and is designed for metering low amp circuits.
Product Features:
- M-Bus Communication
- 5A CT Connected
- Pulsed output
- EN13757-3 Protocol
Specification
Technical Data
| Certification | MID B&D Approved |
| Operating Humidity | ≤ 75% |
| Storage Humidity | ≤ 95% |
| Operating Temperature | 20°C - +50°C |
| Storage Temperature | -30°C - +70°C |
| International Standard | IEC 62053-21 |
| Accuracy Class | 1 |
| Mounting | DIN rail (DIN 43880) |
| Sealing | IP51 Indoor |
| Nominal Voltage Input | (Ph+N) 230V AC (176-276V AC) |
| Max Continuous Voltage | 120% of nominal |
| AC Voltage Withstand | 4KV for 1 minute |
| Impulse Voltage Withstand | 6KV-1.2μS |
| Current Input | 5A(6)A AC RMS |
| Operational Current Range | 0.4% Ib-Imax |
| Over current withstand | 20Imax for 0.01s |
| Nominal Input Current Burden | 0.5VA |
| Frequency | 50Hz(±10%) |
| Power Consumption | ≤ 2W/10VA/phase |
| Pulsed Output | 1000imp/kWh |
Accuracy
| Voltage, Current | 0.5% |
| Frequency | 0.2% of Mid-Frequency |
| Power Factor | 1% of Unity (0.01) |
| Active Power, Apparent Power | ≤ 1& of Range Maximum |
| Reactive Power | ≤ 1& of Range Maximum |
| Reactive Energy (Varh) | Class 2 |
| Active Energy (Wh) | Class 1 |
SDM120CT-M-Bus ( MBus & Pulsed Output)
| Bus Type | M-bus |
| Protocol | EN13757-3 |
| Baud Rate | 300/600/1200/2400/4800/9600 |
| Parity | EVEN/ODD/NONE |
| Stop Bit | 1 or 2 |
| Primary Address | 1 to 250 |
| Secondary Address | 00 00 00 01 to 99 99 99 99 |
Downloads
Ask an expert about the
Eastron SDM120CT-M-Bus-MID 5A Energy Meter
