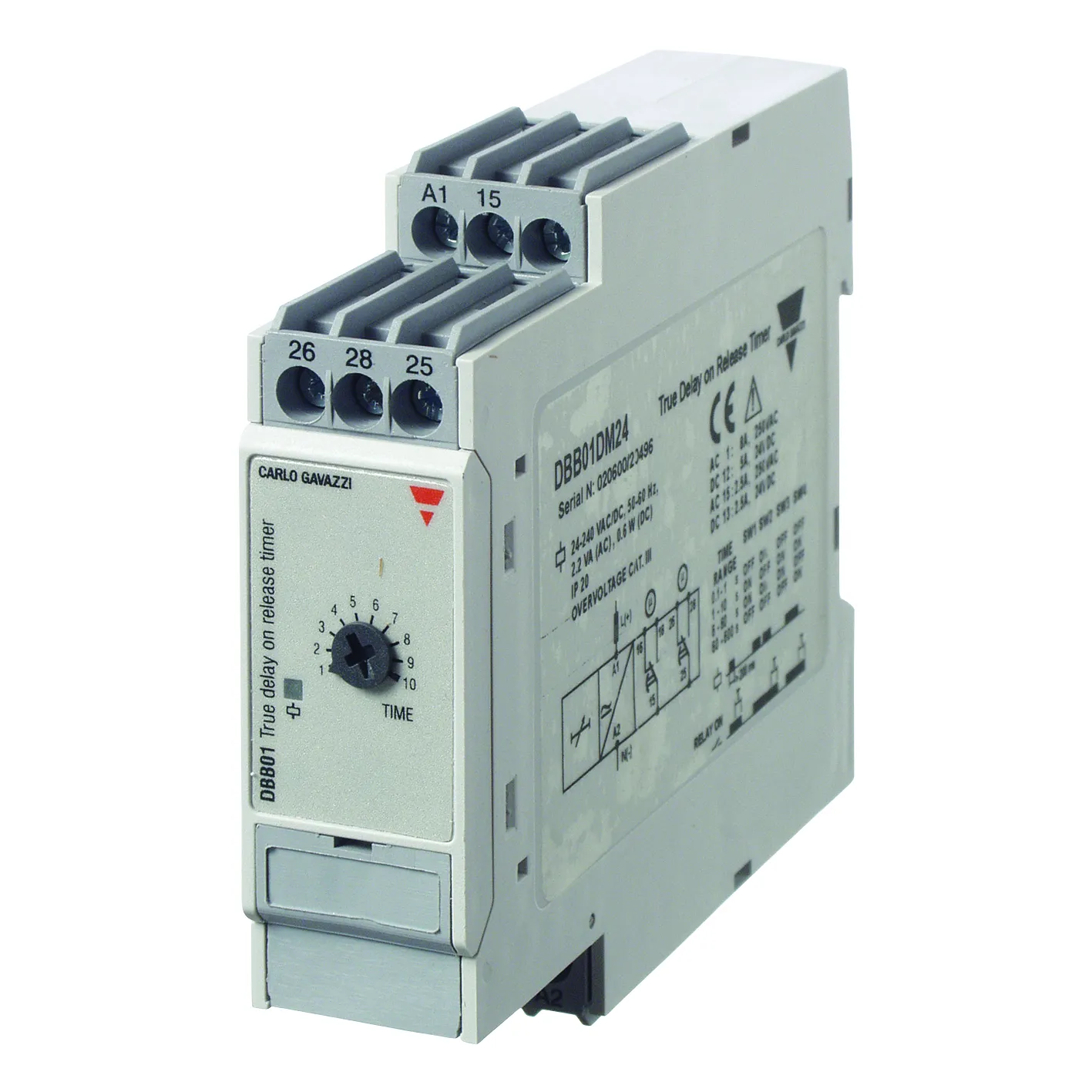

Carlo Gavazzi True Delay on Release Timer (DBB01DM24)

Manufacturer Part No: DBB01DM24

Carlo Gavazzi True Delay on Release Timer (DBB01DM24)

Manufacturer Part No: DBB01DM24

£70.00

£84.00 inc. VAT

Product Description

Multi voltage true delay on release timer with 4 time ranges from 0.1 to 600 s selectable by DIP-switches. For mounting on DIN-rail (DBB01) or Plug-in (PBB01).

Product Features:
  • Time range 0.1 to 600 s - capacitor powered
  • 4 time ranges selectable by DIP-switches
  • Knob-adjustable time setting
  • Automatic start after drop-out of power supply Repeatability: ≤ 0.2%
  • Output: 8 A SPDT or 8 A DPDT relay
  • For mounting on DIN-rail in accordance with DIN/EN
  • 50 022 or Plug-in
  • 22.5 mm Euronorm or 36 mm Plug-in module housing • Combined AC and DC power supply
  • LED indication for relay status and power supply ON

Specification

Time Specifications

Time ranges

0.1 to 1 s

1 to 10 s

6 to 60 s

60 to 600 s

Repeatability

≤ 0.2%

Time Variation within ambient temperature

≤ 0.2%/°C

Time Variation within rated power supply

≤ 0.05%/V

Reset

Power supply applied for min. 200 ms

Supply Specifications

Power Supply

Overvoltage cat. III (IEC 60664, IEC 60038)

Voltage interruption

250 VAC (rms)

AC supply

2.2 VA

DC supply

0.6 W

Output Specifications

Output

SPDT or DPDT relay

Rated insulation voltage

250 VAC (rms)

Mechanical life

≥ 20 x 10(6) operations

Electrical life - AC1

≥ 10(5) operations (at max load)

Operating frequency

< 3600 operations/h

Dielectric voltage

2 kVAC (rms)

Rated impulse withstand voltage

4 kV (1.2/50 μs)
