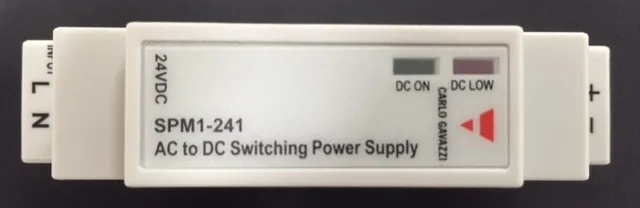

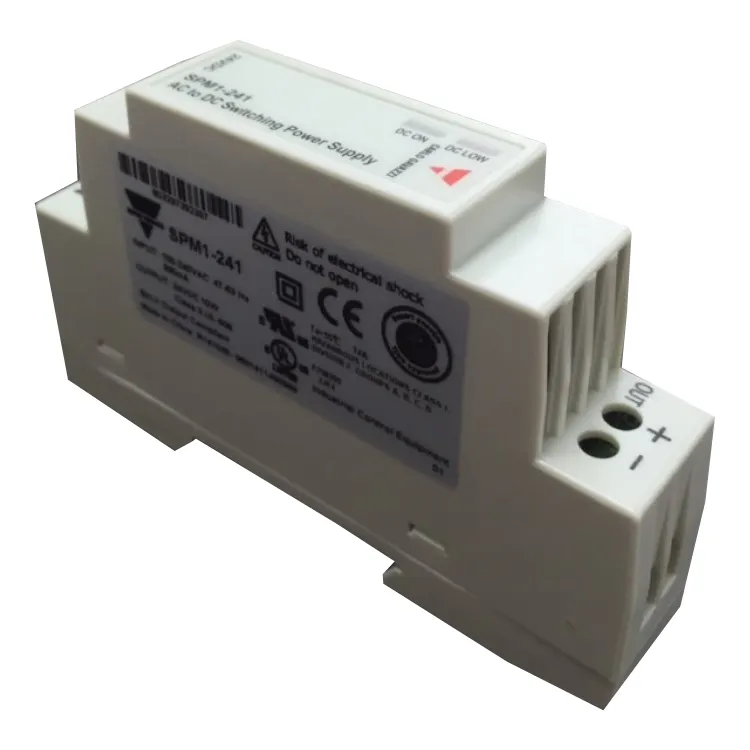

Carlo Gavazzi DIN Switching Power Supply (SPMA24151)

Carlo Gavazzi DIN Switching Power Supply (SPMA24151)

£44.00

£52.80 inc. VAT

Product Description

SPM Modular switching power supplies are specifically designed in order to satisfy both the Automation and the Building automation application requirements.

Product Features:
  • Single DIN module
  • Universal input 90/264VAC – 120/370VDC • High efficiency up to 80%
  • Short circuit protection
  • Overload protection
  • Internal input filter
  • LOW voltage LED indicator
  • UL Class 2 Output

Specification

Output Performances

Model

Input Voltage

Output Power

Output Voltage

Current

Typical Efficiency

SPMA24151

90~264Vac10W24Vdc0.42A80%

Output Data

Line regulation

1% max.

Load regulation

1%

Output Voltage accuracy

±1%

Ripple and Noise

50mV

Temperature Coefficient

±0.02%/°C (±0.0112%/°F)

Hold up time -

Vi = 115Vac

5V and 12V: 10ms

15V and 24V: 60ms

Hold up time -

Vi = 230Vac

30ms

Minimum load

0%

Transient recovery time

(50% load step changed)

1ms

Input Data

Rated input voltage

100/240VAC

Voltage range - AC in

90 - 264 Vac

Voltage range - DC in

120 - 370 Vdc

Line frequency

47 - 63Hz

Inrush current - Vi= 115Vac

Typ: 10A Max: 15A

Inrush current - Vi= 230Vac

Typ: 20A Max: 30A

General data (@ nominal line, full load, 25°C )

Insulation voltage

3.000Vac

Insulation resistance

100MΩ

Ambient temperature

-25°C to +71°C (-13°F to 159.8°F)

Derating (>61°C to +71°C)

2.5%/°C (1.4%°F)

Ambient humidity

90%RH

Storage temperature

-25°C to +85°C (-13°F to 185°F)

Dimensions (W x H x D)

18 x 91 x 55.5mm

Cooling

Free air convection

Case material

Plastic (PC-UL94-V0)

Weight

60g

Protection degree

IP20
