Accuenergy Acuvim II Series

Accuenergy Acuvim II Series

£380.00

£456.00 inc. VAT

Product Description

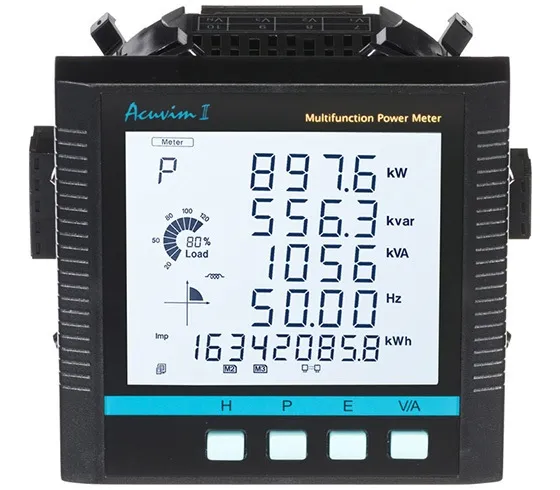

Accuenergy's Acuvim II series is a range of high-end multifunction power and energy meters, well suited for the monitoring and controlling of power distribution systems. They can be used as data gathering devices for intelligent power distribution systems or plant automation systems. All monitored data is available via a digital RS485 communication port running Modbus RTU and DNP 3.0 protocols. Additional communication options include: Modbus, Ethernet, Profibus DP, and BACnet.

Product Features:
  • 100ms Refresh, True-RMS Measuring Parameter
  • ANSI C12.20 (0.2 Class) and IEC 62053-22 (0.2S Class)
  • 16 MB Onboard Memory
  • Power Quality Analysis
  • Multiple Communication Ports (E.g: Ethernet, RS485)
  • Supports Modbus RTU, DNP 3.0, BACnet IP, BACnet MS/TP
  • Web Server and Email Sending, SNTP
  • Switch Status Monitoring
  • Waveform Capture
  • Measure Individual Harmonics from 2nd to 63rd
  • 50/60Hz and 400Hz Rated Frequency Metering
  • TOU, 4 Tariffs, 12 Seasons, 14 Schedules
Acuvim II
Acuvim IIR
Acuvim IIE
Acuvim IIW
ApplicationAll-Purpose UseData LoggingTime-of-Use/BillingPower Quality
Metering400 Parameters400 Parameters400 Parameters400 Parameters
Data Logging
Memory8MB8MB16MB
With AXM-WEB-PUSH4GB4GB4GB4GB
With AXM-WEB28GB8GB8GB8GB
Time-of-use
Power Quality

Specification

Measure

Parameter

Accuracy ± (%rdg)

Range

Voltage

0.2%10V~1000kV

Current

0.2%5mA~50000A

Power

0.2%-9999MW~9999MW

Reactive Power

0.2%-9999Mvar~9999Mvar

Apparent Power

0.2%0~9999MVA

Power Demand

0.2%-9999MW~9999MW

Reactive Power Demand

0.2%-9999Mvar~9999Mvar

Apparent Power Demand

0.2%0~9999MVA

Power Factor

0.2%-1.000~1.000

Frequency

0.02%45.00~65.00Hz (50 or 60Hz type)
300.00Hz~500.00Hz (400Hz type

Energy

0.2%Primary: 0-99999999.9kWh

Secondary: 0-999999.999kWh

Reactive Energy

0.2%Primary: 0-99999999.9kvarh

Secondary: 0-999999.999kvarh

Apparent Energy

0.2%Primary: 0-99999999.9kVAh

Secondary: 0-999999.999kVAh

Harmonics

1.0%

Phase Angle

2.0%0.0°~359.9°

Unbalance Factor

2.0%0.0%~100.0%

Running Time

0~9999999.99h

Input

Voltage Input

Nominal Current

1) 5A
2) 1A
3) 1A(333mV)
4) 1A(100mV Rope-CT)
5) 1A(80mA/100mA/200mA)

Metering Range

1) 0~10A
2) 0~2A
3) 0~1.2A
4) 0~1.2A
5) 0~1.2A

Pickup Current

1) 5mA
2) 1mA
3) 5mA
4) 5mA
5) 5mA

Withstand

20Arms Continuous, 0.1% of Nominal
100Arms for 1 second, Non-Recurring

Burden

0.05VA (Typical) @ 5Arms

Accuracy

0.2% Full Scale

Voltage Inputs (Each Channel)

Nominal Full Scale

See ordering information

Withstand

1500Vac Continuous
2500Vac, 50/60Hz for 1 Minute

Input Impedance

2Mohm per Phase

Metering Frequency

45Hz~65Hz, 300Hz ~ 500Hz

Pickup Voltage

10Vac

Accuracy

0.2% Full Scale

Energy Accuracy

Active

Class 0.2s (According to IEC 62053-22)
Class 0.2s (According to ANSI C12.20)

Reactive

Class 2 (According to IEC 62053-23)

Harmonic Resolution

Metered Value

63rd Harmonic (50Hz or 60Hz type)
15 th Harmonic (400Hz type)

Communication

RS-485 (Standard)

MODBUS® RTU and DNP 3.0
2 Wire Shielded Twisted Pair Cable Connection
Baud Rate:1200~38400 bps

The Second RS-485 Port (Optional)

(The Same as RS-485 Standard Contents)
Baud Rate: 4800~38400 bps

Ethernet (Optional)

10M/100M BaseT
MODBUS® TCP, SNTP, HTTP Push
Webpage Data Browsing Through HTTP Send email Based on Timer or
Triggered Event

PROFIBUS (Optional)

PROFIBUS-DP/V0 Protocol
Work as PROFIBUS Slave, Baud Rate Adaptive, up to 12M
Model 1 : Input Bytes:32,Output Bytes:32
Model 2: Input Bytes :64,Output Bytes:2
PROFIBUS Standard According to EN 50170 Vol.2

BACnet (Optional)

BACnet lP, BACnet MS/TP

Control Power

Universal

AC or DC

AC/DC Control Power

Operating Range

100~415Vac, 50/60Hz; 100~300Vdc

Burden

5W

Frequency

50/60Hz

Withstand

3250Vac, 50/60Hz for 1 minute

Installation Category

III (Distribution)

Low Voltage DC Control Power (Optional)

Operating Range

20~60Vdc

Burden

5W

Operating Environment

Operation temperature

-25°C~ 70°C

Storage temperature

-40°C~ 85°C

Relative Humidity

5%~95% non-condensing

Standard Compliance

Measurement Standard

IEC 62053-22; ANSI C12.20

Environment Standard

IEC 60068-2

Safety Standard

IEC 61010-1, UL 61010-1, IEC 61557-12

EMC Standard

IEC 61000-4/-2-3-4-5-6-8-11, CISPR 22,
IEC 61000-3-2, IEC 61000-6-2/4

Outlines Standard

DIN 43700, ANSI C39.1
