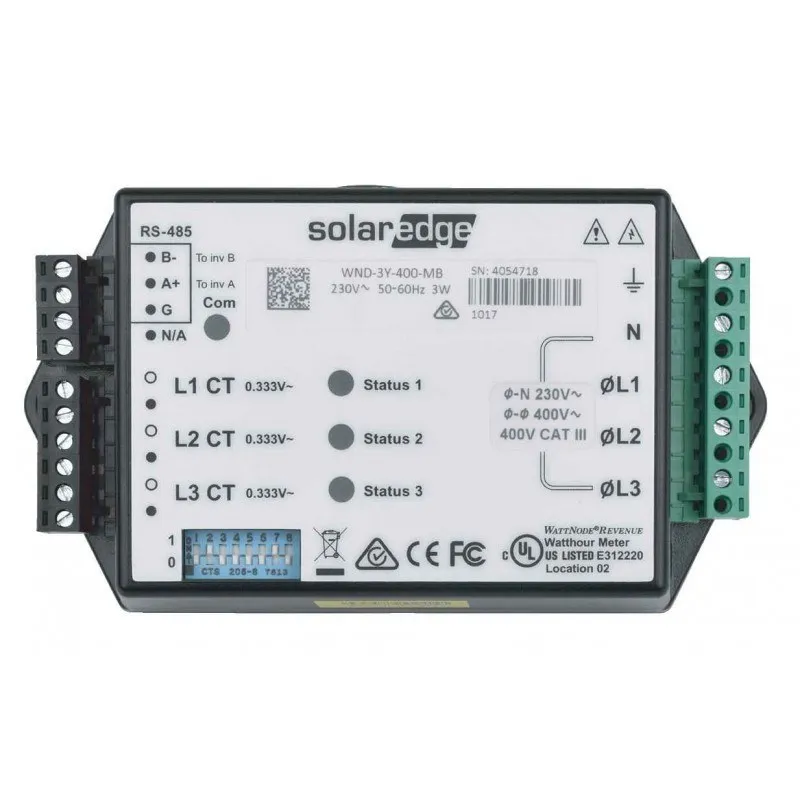

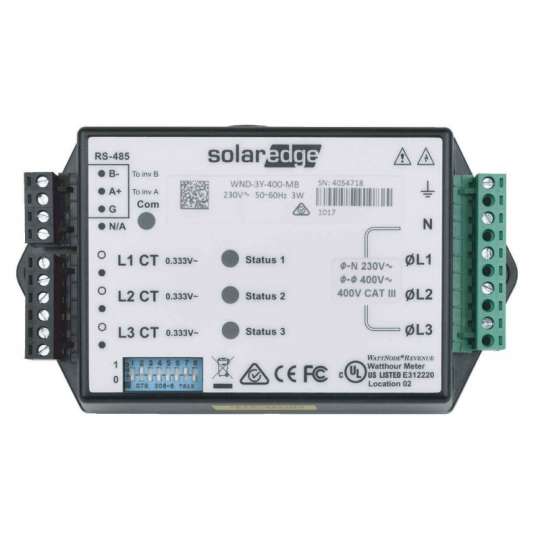

SolarEdge Energy Meter with Modbus Connection (SE-WND-3Y400-MB-K2)
£120.00
£144.00 inc. VAT
Product Description
SolarEdge's SE-WND-3Y400-MB-K2 is an energy meter with Modbus communication designed for use with SolarEdge photovoltaic (PV) systems. It provides accurate production and consumption monitoring, enabling users to optimise energy management and support export limitation functionality.
The compact meter is easy to install within a standard electrical panel and is suitable for residential, commercial, and utility-scale solar installations. With import/export energy measurement capabilities and RS485 Modbus communication, it enables reliable integration with SolarEdge systems for real-time energy monitoring and control.
Specification
| Operating Voltage Range - Line to Neutral / Line to Line | 184-264.5 / 320-460 Vac |
|---|---|
| AC Frequency | 50/60 Hz |
| Grids Supported - Single Phase ; Three Phase(1) | L / N / PE ; L1 / L 2 / L3 / N / PE |
| Power Consumption (typ.) | 1.8 W |
| Supported Communication Interfaces | RS485 |
| Response time | ≤1(2) sec |
| Default Device ID (Modbus) | 2 |
| RS485 line termination | 120 Ω |
| 1% - 100% of Rated CT Current | ±1.0% |
| Safety | IEC 61010-1, CAN/CSA-C22.2 No. 61010-1-04, IEC 61010-1:2010 (3rd Edition) |
| Immunity | EN 61326, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 |
| Emissions | FCC Part 15: Class B, CISPR11: 2009: Class B |
| Export Limiting Schemes | Engineering Recommendation G100. Issue 1 Amendment 1 2017 by ENA London UK |
| Dimensions (HxWxD) | 85 x 153 × 38 mm |
| Weight | 310 gr |
| Enclosure type | High impact, ABS and/or ABS/PC plastic UL 94V-0, IEC FV-0 |
| Operating Temperature Range | -40 to 75 °C |
| Relative Humidity (noncondensing) | 5 - 90 % |
| Protection Rating | Indoor (Outdoor when installed in an outdoor enclosure) |
| Mounting Type | DIN Rail / Wall mount |
